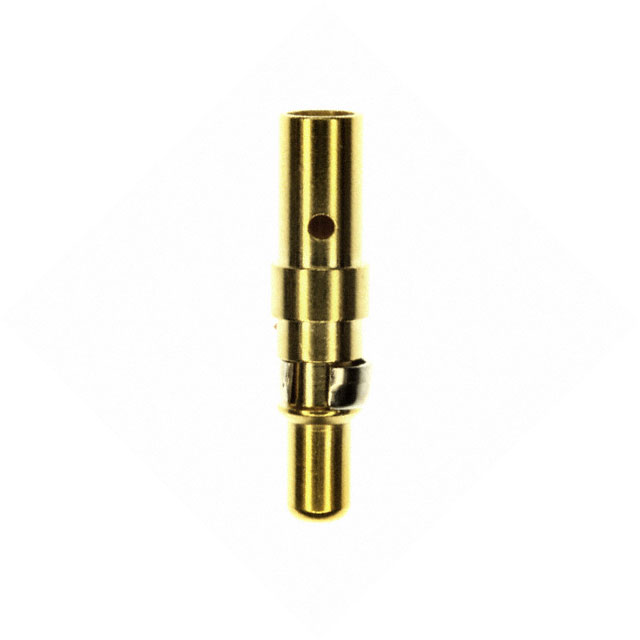

131C11039X

Active

Amphenol CONEC

D SUB CONTACT, PIN, 10-12AWG, CRIMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

D SUB CONTACT, PIN, 10-12AWG, CRIMP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	131C11039X

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Termination	Crimp
Contact Type	Male Pin
Termination Finish	Gold
Termination Finish Thickness	Flash
Type	Power
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Termination	Termination Finish	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Type	Termination Finish Thickness
Amphenol CONEC 131C11029X	0.76 Ám	30 Áin	Gold	Crimp	Gold	Male Pin	14 AWG	12 AWG	Copper Alloy	Power	Flash
Amphenol CONEC 131C11039X	0.76 Ám	30 Áin	Gold	Crimp	Gold	Male Pin	12 AWG	10 AWG	Copper Alloy	Power	Flash
Amphenol CONEC 131C11049X	0.76 Ám	30 Áin	Gold	Crimp	Gold	Male Pin	10 AWG	8 AWG	Copper Alloy	Power	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Contact Male Pin Gold 10-12 AWG Crimp Machined
