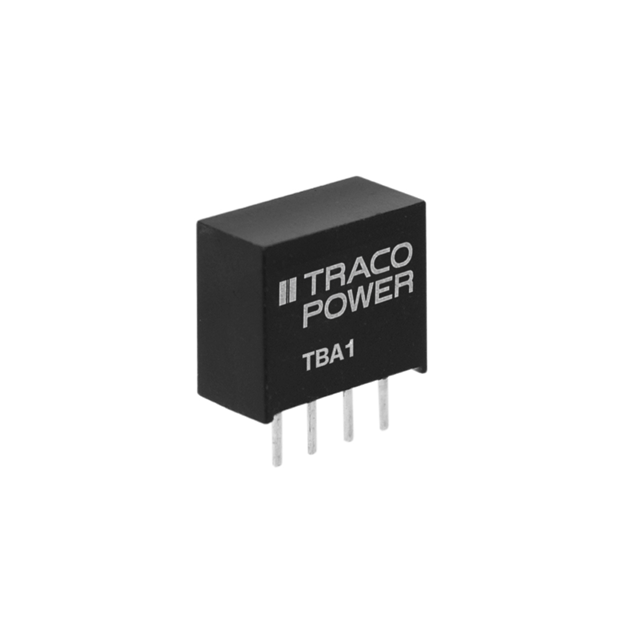

TBA 1-2419

Active

Traco Power

DC DC CONVERTER 9V 990MW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TBA 1-2419

Active

Traco Power

DC DC CONVERTER 9V 990MW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBA 1-2419

Applications	ITE (Commercial)
Current - Output (Max) [Max]	110 mA
Efficiency	80 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	95 °C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP Module
Power (Watts)	0.99 W
Size / Dimension [x]	0.46 in
Size / Dimension [x]	11.7 mm
Size / Dimension [y]	0.24 "
Size / Dimension [y]	6 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	26.4 V
Voltage - Input (Min) [Min]	21.6 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	9 V

TBA 1 Series

Part	Features	Voltage - Input (Max) [Max]	Package / Case	Type	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Mounting Type	Voltage - Isolation	Efficiency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power TBA 1-1211	SCP	13.2 V	4-SIP Module	Isolated Module	10.8 V	1	ITE (Commercial)	0.24 "	0.46 in	11.7 mm	10.2 mm	0.4 "	6 mm	-40 °C	95 °C	5 V	200 mA	Through Hole	1.5 kV	79 %
Traco Power TBA 1-0519	SCP	5.5 V	4-SIP Module	Isolated Module	4.5 V	1	ITE (Commercial)	0.24 "	0.46 in	11.7 mm	10.2 mm	0.4 "	6 mm	-40 °C	95 °C	9 V	110 mA	Through Hole	1.5 kV	80 %	0.99 W
Traco Power TBA 1-2413E	SCP	26.4 V	7-SIP Module 4 Leads	Isolated Module	21.6 V	1	ITE (Commercial)			0.77 "	0.39 in		0.24 in	-40 °C	95 °C	15 V	66 mA	Through Hole	1.5 kV		0.99 W	6 mm	10 mm	19.5 mm
Traco Power TBA 1-1223HI	SCP	13.2 V	7-SIP Module 5 Leads	Isolated Module	10.8 V	2	ITE (Commercial)			0.77 "	0.39 in		0.24 in	-40 °C	95 °C	15 V		Through Hole	3000 V	80 %	0.99 W	6 mm	10 mm	19.5 mm	-15 V	33 mA
Traco Power TBA 1-0523E	SCP	5.5 V	7-SIP Module 5 Leads	Isolated Module	4.5 V	2	ITE (Commercial)			0.77 "	0.39 in		0.24 in	-40 °C	95 °C	15 V		Through Hole	1.5 kV		0.99 W	6 mm	10 mm	19.5 mm	-15 V	33 mA
Traco Power TBA 1-2423HI	SCP	26.4 V	7-SIP Module 5 Leads	Isolated Module	21.6 V	2	ITE (Commercial)			0.77 "	0.39 in		0.24 in	-40 °C	95 °C	15 V		Through Hole	3000 V		0.99 W	6 mm	10 mm	19.5 mm	-15 V	33 mA
Traco Power TBA 1-0521HI	SCP	5.5 V	7-SIP Module 5 Leads	Isolated Module	4.5 V	2	ITE (Commercial)			0.77 "	0.39 in		0.24 in	-40 °C	95 °C	5 V		Through Hole	3000 V	79 %		6 mm	10 mm	19.5 mm	-5 V	100 mA	100 mA
Traco Power TBA 1-0521E	SCP	5.5 V	7-SIP Module 5 Leads	Isolated Module	4.5 V	2	ITE (Commercial)			0.77 "	0.39 in		0.24 in	-40 °C	95 °C	5 V		Through Hole	1.5 kV	79 %		6 mm	10 mm	19.5 mm	-5 V	100 mA	100 mA
Traco Power TBA 1-0522E	SCP	5.5 V	7-SIP Module 5 Leads	Isolated Module	4.5 V	2	ITE (Commercial)			0.77 "	0.39 in		0.24 in	-40 °C	95 °C	12 V		Through Hole	1.5 kV		984 mW	6 mm	10 mm	19.5 mm	-12 V		41 mA	41 mA
Traco Power TBA 1-2419	SCP	26.4 V	4-SIP Module	Isolated Module	21.6 V	1	ITE (Commercial)	0.24 "	0.46 in	11.7 mm	10.2 mm	0.4 "	6 mm	-40 °C	95 °C	9 V	110 mA	Through Hole	1.5 kV	80 %	0.99 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.03
		10	$ 3.70
		25	$ 3.58
		50	$ 3.49
		100	$ 3.40
		250	$ 3.29
		500	$ 3.26

Description

General part information

TBA 1 Series

Isolated Module DC DC Converter 1 Output 9V 110mA 21.6V - 26.4V Input
