SSM2304CPZ-REEL7

Obsolete

Analog Devices

IC AMP AUDIO 2.4W STER D 16LFCSP

Search across all available documentation for this part.

Obsolete

Analog Devices

IC AMP AUDIO 2.4W STER D 16LFCSP

Technical Specifications

Parameters and characteristics for this part

Specification	SSM2304CPZ-REEL7

Features	Short-Circuit and Thermal Protection, Differential Inputs, Depop, Shutdown
Max Output Power x Channels @ Load	2.4 W
Max Output Power x Channels @ Load [x]	2
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)

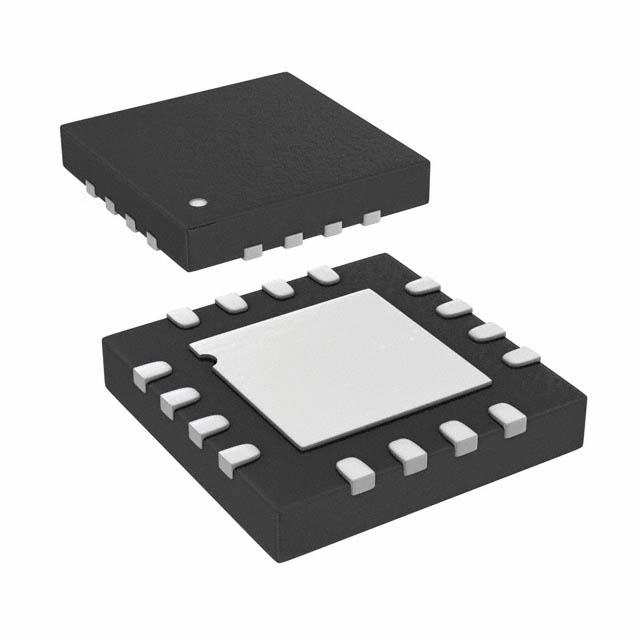

Supplier Device Package	16-LFCSP-VQ (3x3)
Type	Class D
Voltage - Supply [Max]	5 V
Voltage - Supply [Min]	2.5 V

Part	Supplier Device Package	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Output Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Analog Devices SSM2304CPZ-REEL7	16-LFCSP-VQ (3x3)	Class D	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	85 °C	-40 °C	2.4 W	2	2-Channel (Stereo)	Surface Mount	5 V	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$
