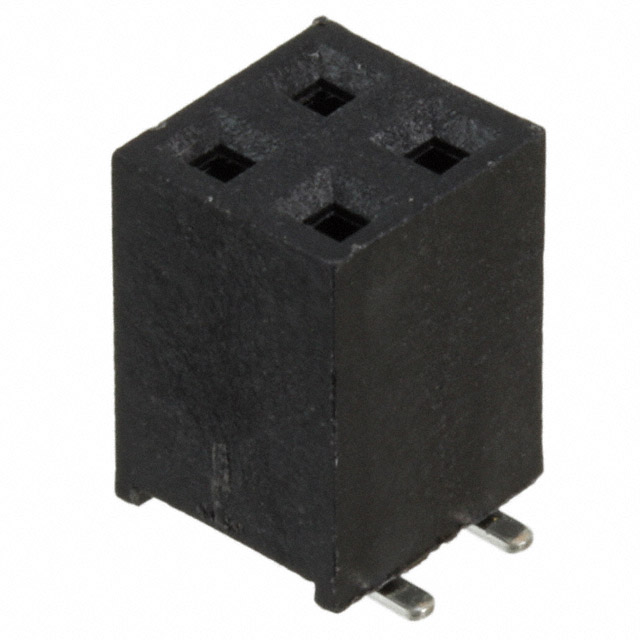

M20-7870246

Active

Harwin Inc.

CONNECTOR, RCPT, 4POS, 2.54MM, 2ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Drawing EN +3

M20-7870246

Active

Harwin Inc.

CONNECTOR, RCPT, 4POS, 2.54MM, 2ROW

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Drawing EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-7870246

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.295 in
Insulation Height	7.5 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	10.04 mm, 11.63 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	1000 VDC

M20-787 Series

Part	Insulation Color	Material Flammability Rating	Applications	Number of Positions Loaded	Fastening Type	Connector Type	Termination	Contact Type	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Material	Pitch - Mating	Pitch - Mating	Voltage Rating	Mounting Type	Contact Finish - Mating	Number of Positions	Insulation Height	Insulation Height	Mated Stacking Heights	Contact Finish - Post	Number of Positions
Harwin Inc. M20-7870342	Black	UL94 V-0	General Purpose Industrial Telecommunications	All	Push-Pull	Receptacle Bottom or Top Entry	Solder	Female Socket	Square	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A	2	2.54 mm	0.1 in	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	1000 VDC	Surface Mount	Gold	6	0.295 in	7.5 mm	10.04 mm 11.63 mm	Tin
Harwin Inc. M20-7870642	Black	UL94 V-0	General Purpose Industrial Telecommunications	All	Push-Pull	Receptacle Bottom or Top Entry	Solder	Female Socket	Square	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A	2	2.54 mm	0.1 in	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	1000 VDC	Surface Mount	Gold	12	0.295 in	7.5 mm	10.04 mm 11.63 mm	Tin
Harwin Inc. M20-7870842	Black	UL94 V-0	General Purpose Industrial Telecommunications	All	Push-Pull	Receptacle Bottom or Top Entry	Solder	Female Socket	Square	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A	2	2.54 mm	0.1 in	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	1000 VDC	Surface Mount	Gold		0.295 in	7.5 mm	10.04 mm 11.63 mm	Tin	16
Harwin Inc. M20-7870242	Black	UL94 V-0	General Purpose Industrial Telecommunications	All	Push-Pull	Receptacle Bottom or Top Entry	Solder	Female Socket	Square	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A	2	2.54 mm	0.1 in	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	1000 VDC	Surface Mount	Gold	4	0.295 in	7.5 mm	10.04 mm 11.63 mm	Tin
Harwin Inc. M20-7870646	Black	UL94 V-0	General Purpose Industrial Telecommunications	All	Push-Pull	Receptacle Bottom or Top Entry	Solder	Female Socket	Square	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A	2	2.54 mm	0.1 in	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	1000 VDC	Surface Mount		12	0.295 in	7.5 mm	10.04 mm 11.63 mm	Tin
Harwin Inc. M20-7870246	Black	UL94 V-0	General Purpose Industrial Telecommunications	All	Push-Pull	Receptacle Bottom or Top Entry	Solder	Female Socket	Square	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A	2	2.54 mm	0.1 in	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	1000 VDC	Surface Mount		4	0.295 in	7.5 mm	10.04 mm 11.63 mm	Tin
Harwin Inc. M20-7870442R	Black	UL94 V-0	General Purpose Industrial Telecommunications	All	Push-Pull	Receptacle Bottom or Top Entry	Solder	Female Socket	Square	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C	3 A	2	2.54 mm	0.1 in	Board to Board Cable	Phosphor Bronze	0.1 in	2.54 mm	1000 VDC	Surface Mount	Gold	8	0.295 in	7.5 mm	10.04 mm 11.63 mm	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.61
		10	$ 0.51
		108	$ 0.43
		540	$ 0.39
		1080	$ 0.37
		5076	$ 0.33
		10044	$ 0.32
Newark	Each	10	$ 0.51
		100	$ 0.47
		500	$ 0.43
		1000	$ 0.39
		2500	$ 0.37
		5000	$ 0.35
		10000	$ 0.33

Description

General part information

M20-787 Series

4 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Tin
