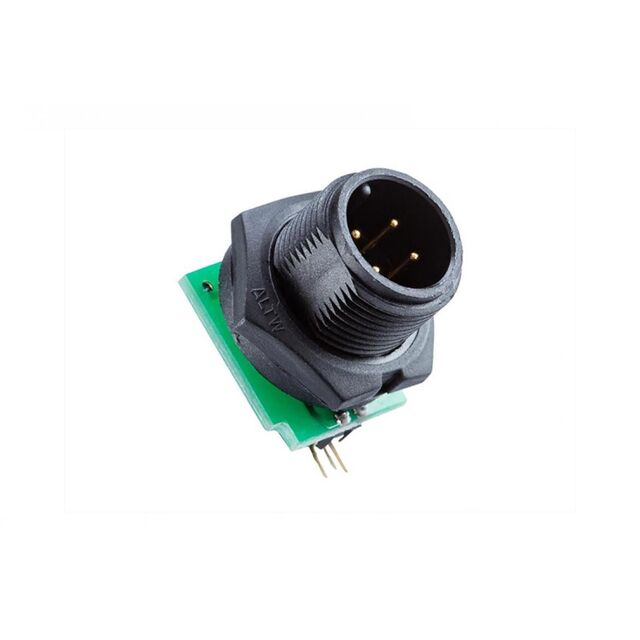

BD-05PMMR-LC7001

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 05 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, 5A, 05 PINS, RECEPTACLE, CIRCULAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Primary Material	Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Material	Features	Contact Finish - Mating	Shell Size - Insert	Mounting Type	Ingress Protection	Orientation	Termination	Connector Type	Insert Material	Voltage Rating	Shell Material
Amphenol LTW BD-05PMMR-LC7001	Plastic	Black	5 A	-40 °C	105 ░C	Unshielded	Copper Alloy	Board Guide	Gold	B	Through Hole Right Angle	IP67 - Dust Tight Waterproof	Keyed	Solder	Male Pins Receptacle	Thermoplastic	250 VDC
Amphenol LTW BD-05PMMR-SC7001	Plastic	Black	5 A	-40 °C	105 ░C	Unshielded	Copper Alloy	Board Guide	Gold	B	Through Hole Right Angle	IP67 - Dust Tight Waterproof	Keyed	Solder	Male Pins Receptacle	Polyamide (PA) Nylon Glass Filled	250 VDC	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder
