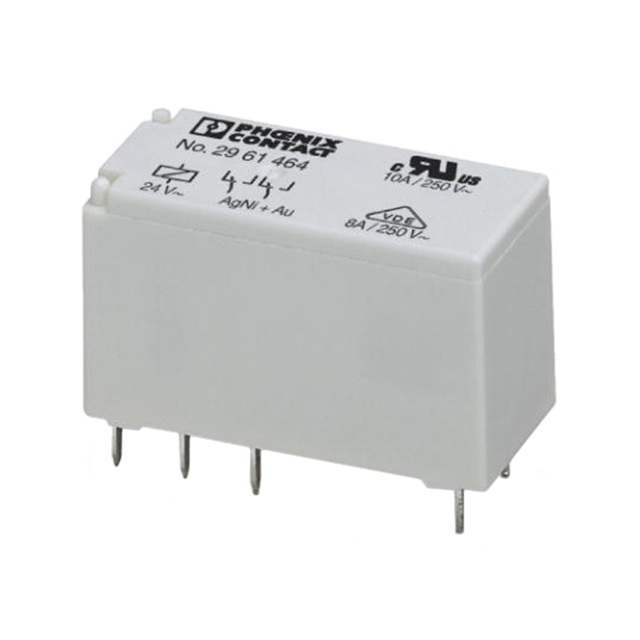

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 8A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Type	Coil Voltage	Coil Current	Contact Material	Approval Agency	Contact Form	Switching Voltage	Release Time	Mounting Type	Relay Type	Coil Resistance	Contact Rating (Current)
Phoenix Contact 2961406	12 ms	85 °C	-40 °C	PC Pin	Non Latching	24 VAC	24 mA	Silver Nickel (AgNi)	cULus EAC UR	SPDT (1 Form C)	250 VAC 250 VDC	9 ms	Through Hole	General Purpose	350 Ohms	16 A
Phoenix Contact 2961480	12 ms	85 °C	-40 °C	PC Pin	Non Latching	230 VAC		Gold (Au) Silver Nickel (AgNi)	cULus EAC UR	DPDT (2 Form C)	250 VAC 250 VDC	9 ms	Through Hole	General Purpose	32500 Ohms	8 A
Phoenix Contact 2961422	12 ms	85 °C	-40 °C	PC Pin	Non Latching	230 VAC		Silver Nickel (AgNi)	cULus EAC UR	SPDT (1 Form C)	250 VAC 250 VDC	9 ms	Through Hole	General Purpose	32500 Ohms	16 A
Phoenix Contact 2961464	12 ms	85 °C	-40 °C	PC Pin	Non Latching	24 VAC	24 mA	Gold (Au) Silver Nickel (AgNi)	cULus EAC UR	DPDT (2 Form C)	250 VAC 250 VDC	9 ms	Through Hole	General Purpose	350 Ohms	8 A
Phoenix Contact 2961493	5 ms	85 °C	-40 °C	PC Pin	Non Latching	18 VDC	9 mA	Gold (Au) Silver Nickel (AgNi)	cULus EAC UR	SPDT (1 Form C)	250 VAC 250 VDC	2.5 ms	Through Hole	General Purpose	1.906 kOhms	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.53

General part information

General Purpose Relay DPDT (2 Form C) 24VAC Coil Through Hole
