MBN0.50SV100
ActiveTechflex

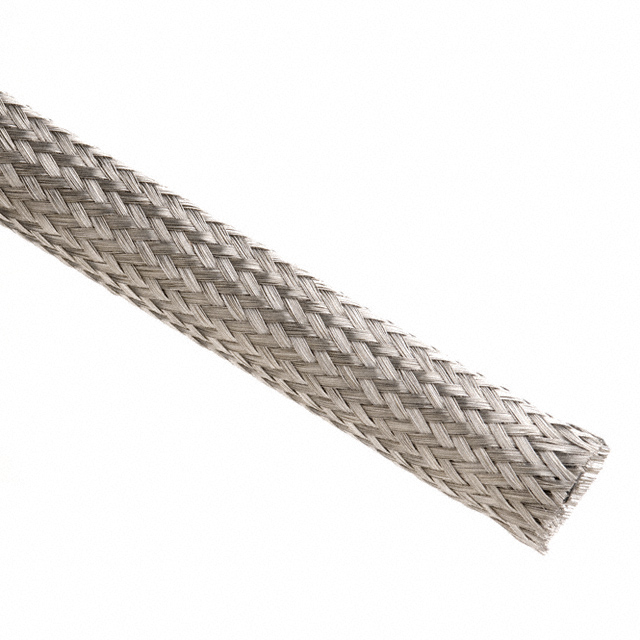

GROUND BRAID TUBE 0.5"DIA X 100'
Deep-Dive with AI
Search across all available documentation for this part.
MBN0.50SV100
ActiveTechflex
GROUND BRAID TUBE 0.5"DIA X 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MBN0.50SV100 |
|---|---|
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Material | Copper, Tinned |
| Number of Carriers | 48 |
| Size, Supplied [diameter] | 0.5 in |
| Size, Supplied [diameter] | 12.7 mm |
| Size, Supplied [diameter] | 0.5 in |
| Thickness | 0.013 in |
| Thickness | 0.33 mm |
| Type | Tubular |
| Wire Gauge - Ends | 36 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 198.60 | |
| 2 | $ 182.65 | |||
| 3 | $ 173.93 | |||
| 5 | $ 163.52 | |||
| 7 | $ 157.02 | |||
| 10 | $ 150.40 | |||
| 25 | $ 134.66 | |||
| 50 | $ 123.86 | |||
Description
General part information
MBN0.50 Series
Tubular Ground Braid 0.500" (12.70mm, 1/2") - Outer Dia X 100.0' (30.48m) 36 AWG
Documents
Technical documentation and resources
