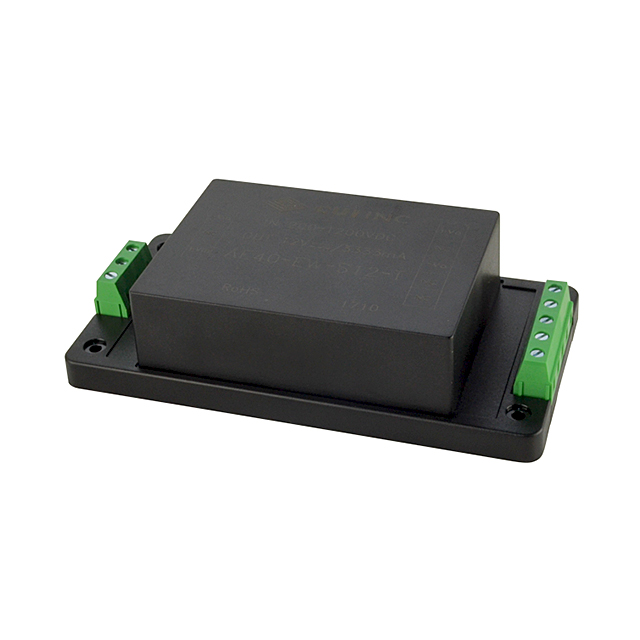

AE40-EW-S12-T

CUI Inc.

DC/DC CONVERTER 12V 40W

Search across all available documentation for this part.

CUI Inc.

DC/DC CONVERTER 12V 40W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Efficiency	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Voltage - Isolation	Input Type	Power (Watts)	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Type	Features	Voltage - Input (Max) [Max]	Applications
CUI Inc. AE40-EW-S15-DIN	2.67 A	5.32 in	2.76 in	135 mm	1.54 "	70 mm	39 mm	15 V	-25 °C	70 °C	1	84 %	200 V	1200 V	4000 V	DC	40 W
CUI Inc. AE40-EW-S24	1.67 A	3.5 in	2.5 in	89 mm	0.98 in	63.5 mm	25 mm	24 V	-25 °C	70 °C	1	84 %			4000 V		40 W	Through Hole	200 V	7-DIP Module	Isolated Module	OCP OVP SCP	1200 V	ITE (Commercial)
CUI Inc. AE40-EW-S24-DIN	1.67 A	5.32 in	2.76 in	135 mm	1.54 "	70 mm	39 mm	24 V	-25 °C	70 °C	1	84 %	200 V	1200 V	4000 V	DC	40 W
CUI Inc. AE40-EW-S12-T	3.33 A	5.32 in	2.76 in	135 mm	1.32 in	70 mm	33.5 mm	12 V	-25 °C	70 °C	1	83 %			4000 V		40 W	Chassis Mount	200 V		Enclosed		1200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed DC DC Converter 1 Output 12V 3.33A 1200V Input

Technical documentation and resources

No documents available
