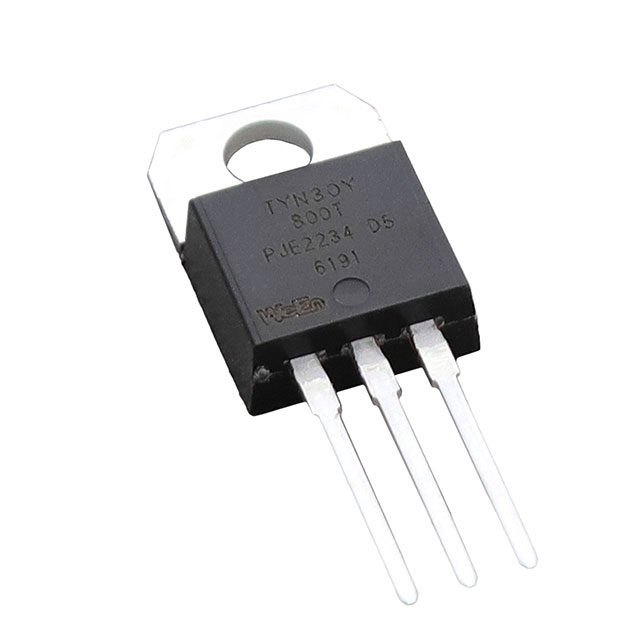

TYN30Y-800TQ

Active

WeEn Semiconductors Co., Ltd

SCR 800V 30A IITO220E

Search across all available documentation for this part.

Active

WeEn Semiconductors Co., Ltd

SCR 800V 30A IITO220E

Technical Specifications

Parameters and characteristics for this part

Specification	TYN30Y-800TQ

Current - Gate Trigger (Igt) (Max) [Max]	15 mA
Current - Hold (Ih) (Max) [Max]	60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	385 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	350 A
Current - Off State (Max) [Max]	1 mA
Current - On State (It (AV)) (Max)	19 A
Current - On State (It (RMS)) (Max) [Max]	30 A
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-220-3 Isolated Tab
SCR Type	Standard Recovery
Supplier Device Package	IITO-220E
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V
Voltage - Off State	800 V
Voltage - On State (Vtm) (Max) [Max]	1.5 V

Part	Operating Temperature	Voltage - Gate Trigger (Vgt) (Max) [Max]	Supplier Device Package	Voltage - On State (Vtm) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - On State (It (AV)) (Max)	SCR Type	Mounting Type	Current - Off State (Max) [Max]	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)
WeEn Semiconductors Co., Ltd TYN30Y-800TQ	150 °C	1 V	IITO-220E	1.5 V	350 A	385 A	800 V	60 mA	30 A	19 A	Standard Recovery	Through Hole	1 mA	TO-220-3 Isolated Tab	15 mA
WeEn Semiconductors Co., Ltd TYN30Y-600TFQ	150 °C	1 V	TO-220AB	1.5 V			600 V	40 mA	30 A	19 A	Standard Recovery	Through Hole	10 µA	TO-220-3 Isolated Tab	10 mA	360 A 396 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 800 V 30 A Standard Recovery Through Hole IITO-220E
