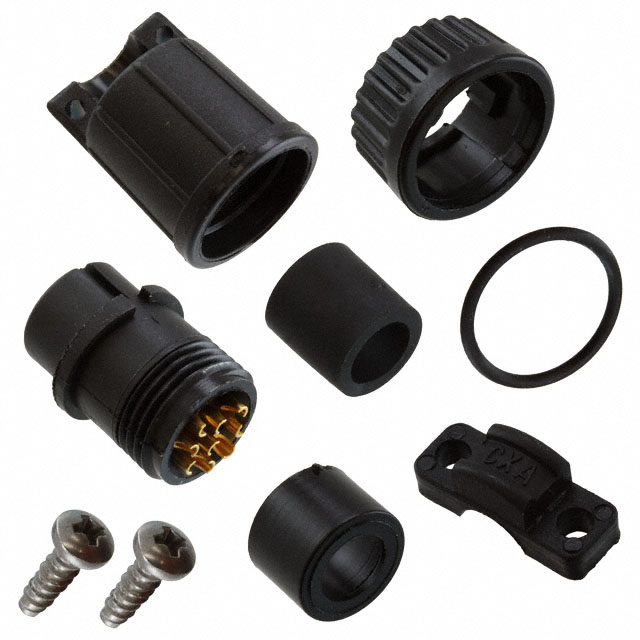

3282-9SG-530

Active

Conxall/Switchcraft

CONN PLUG FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMulti-Con-X Connectors Datasheet

3282-9SG-530

Active

Conxall/Switchcraft

CONN PLUG FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

DocumentsMulti-Con-X Connectors Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3282-9SG-530

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.32 in
Cable Opening [Max] [diameter]	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm
Cable Opening [Min] [diameter]	0.3 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

3282-9S Series

Part	Shielding	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Material	Connector Type	Fastening Type	Orientation	Ingress Protection	Contact Finish - Mating	Number of Positions	Primary Material	Voltage Rating	Features	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3282-9SG-330	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black	7.62 mm	0.32 in	8.13 mm	0.3 in	Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell	Nylon Polyamide (PA)
Conxall/Switchcraft 3282-9SG-528	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black	7.11 mm	0.29 in		0.28 in	Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell Cable Clamp	Nylon Polyamide (PA)	7.37 mm
Conxall/Switchcraft 3282-9SG-328	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black	7.11 mm	0.29 in		0.28 in	Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell	Nylon Polyamide (PA)	7.37 mm
Conxall/Switchcraft 3282-9SG-521	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black	5.33 mm	0.23 in		0.21 in	Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell Cable Clamp	Nylon Polyamide (PA)	5.84 mm
Conxall/Switchcraft 3282-9SG-318	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black					Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell	Nylon Polyamide (PA)		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-9SG-315	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black					Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell	Nylon Polyamide (PA)						0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3282-9SG-321	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black	5.33 mm	0.23 in		0.21 in	Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell	Nylon Polyamide (PA)	5.84 mm
Conxall/Switchcraft 3282-9SG-518	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black					Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell Cable Clamp	Nylon Polyamide (PA)		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-9SG-530	Unshielded	5.6 A	Free Hanging (In-Line)	-40 °C	115 °C	Black	7.62 mm	0.32 in	8.13 mm	0.3 in	Brass	Female Sockets Plug	Bayonet Lock	Keyed	Weathertight	Gold	9	Plastic	600 V	Backshell Cable Clamp	Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.60

Description

General part information

3282-9S Series

9 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Multi-Con-X Connectors

Datasheet
