Q8F7BXXW02E

Active

APEM

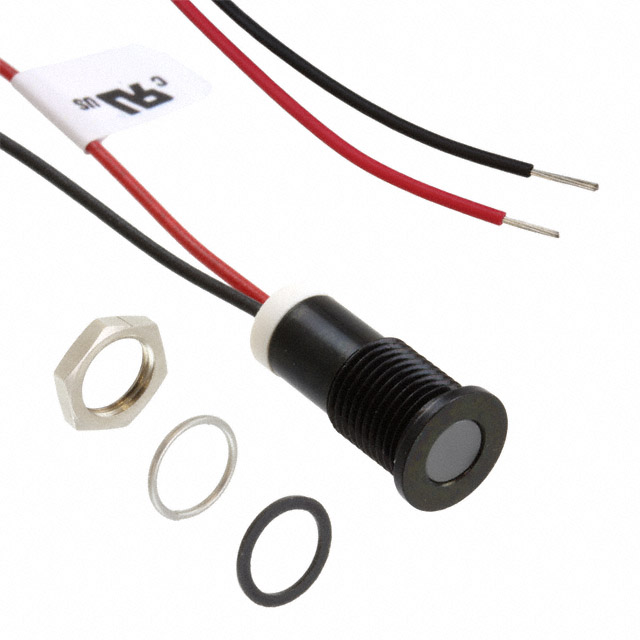

LED PM INDICATOR FLUSH WHT

Search across all available documentation for this part.

Active

APEM

LED PM INDICATOR FLUSH WHT

Technical Specifications

Parameters and characteristics for this part

Specification	Q8F7BXXW02E

Ingress Protection	IP67
Lamp Color	White
Lens Color	White
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Transparency	Diffused
Millicandela Rating	500 mcd
Panel Cutout Dimensions [custom]	0.31 in
Panel Cutout Dimensions [custom]	7.87 mm
Panel Cutout Shape	Round
Termination Style	Wire Leads - 7.87" (200.00mm)
Type	LED
Viewing Angle	100 °
Voltage	2 V

Part	Viewing Angle	Ingress Protection	Termination Style	Millicandela Rating	Lens Transparency	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Lens Size	Lens Size	Voltage	Panel Cutout Shape	Lamp Color	Lens Color	Type
APEM Q8F7BXXW02E	100 °	IP67	Wire Leads - 7.87" (200.00mm)	500 mcd	Diffused	0.31 in	7.87 mm	T-1 3/4	5 mm	2 V	Round	White	White	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator White Diffused 100° 2V 20mA Wire Leads - 7.87" (200.00mm)
