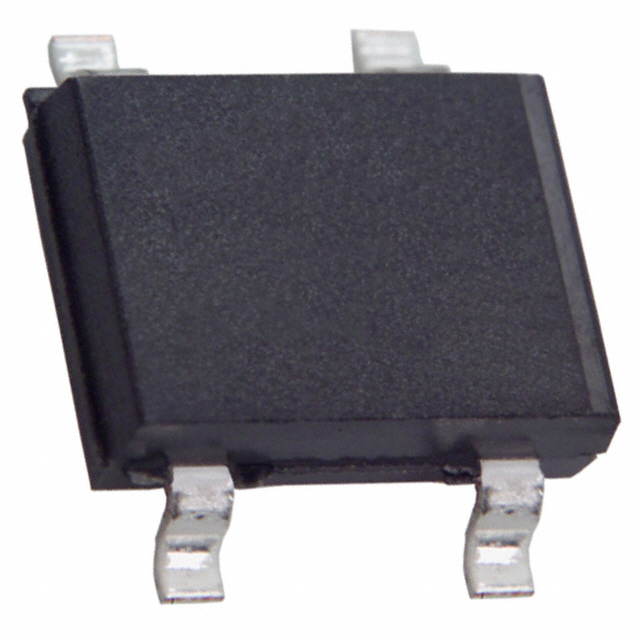

TS140S_R1_00001
ActivePanjit International Inc.
TDI, SKY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS140S_R1_00001
ActivePanjit International Inc.
TDI, SKY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS140S_R1_00001 |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 100 çA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-MicroDIP/SMD |
| Technology | Schottky |
| Voltage - Forward (Vf) (Max) @ If | 500 mV |
| Voltage - Peak Reverse (Max) | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.73 | |
| Digi-Reel® | 1 | $ 0.73 | ||
| Tape & Reel (TR) | 1000 | $ 0.20 | ||
| 2000 | $ 0.18 | |||
| 3000 | $ 0.17 | |||
| 5000 | $ 0.16 | |||
| 7000 | $ 0.15 | |||
| 10000 | $ 0.15 | |||
| 25000 | $ 0.13 | |||
| 50000 | $ 0.13 | |||
Description
General part information
TS140 Series
Bridge Rectifier Single Phase Schottky 40 V Surface Mount 4-MicroDIP/SMD
