PX0410/08P/6065

Active

BULGIN LIMITED

5A, 125VAC/DC, MALE, MAINS POWER CONNECTOR, CRIMP/SOLDER, PLUG, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PX0410/08P/6065

Active

BULGIN LIMITED

5A, 125VAC/DC, MALE, MAINS POWER CONNECTOR, CRIMP/SOLDER, PLUG, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0410/08P/6065

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Features	Coupling Nut, UV Resistant, Backshell
Housing Color	Black, Blue

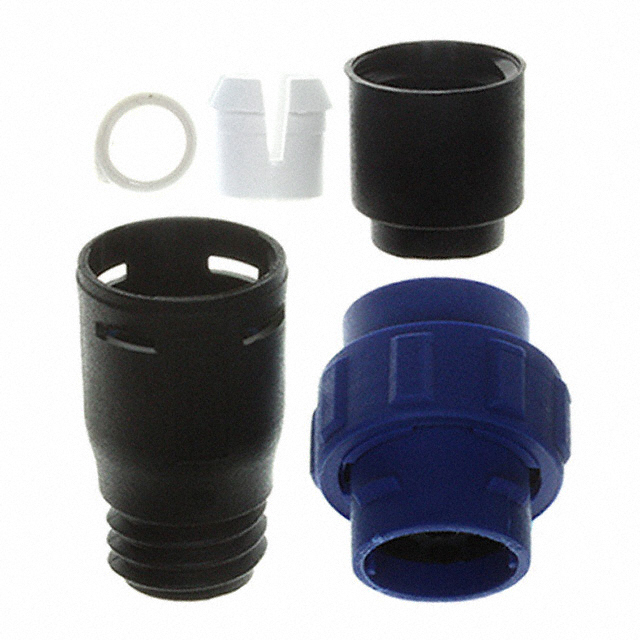

Includes	1 Connector, 1 Cage Clamp, 1 O-Ring, 1 Backshell, 1 Gland, 1 Clamp Nut
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Type	For Male Pins

buccaneer-400 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Type	Includes	Orientation	Housing Color	Contact Shape	Material Flammability Rating	Ingress Protection	Primary Material	Mounting Type	Contact Type	Connector Type	Note	Number of Positions	Mounting Feature
BULGIN LIMITED PX0410/03S/5560	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	3
BULGIN LIMITED PX0410/06S/3035	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	6
BULGIN LIMITED PX0410/06S/5055	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	6
BULGIN LIMITED PX0410/10S/6570	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	10
BULGIN LIMITED PX0410/04P/3035	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Male Pins	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	4
BULGIN LIMITED PX0413/02P	-40 °C	80 C	Unshielded	UV Resistant	For Male Pins		Keyed	Black	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic		Crimp and Solder Cup	Receptacle Housing	Contacts Not Included	2	Bulkhead - Front Side Nut
BULGIN LIMITED PX0410/04P/6570	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Male Pins	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	4
BULGIN LIMITED PX0410/08P/6065	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Male Pins	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	8
BULGIN LIMITED PX0410/08P/5560	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Male Pins	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	8
BULGIN LIMITED PX0410/02S/3035	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.32
		10	$ 11.32
		25	$ 10.61
		50	$ 10.10
		100	$ 9.62
		300	$ 8.90
		500	$ 8.59
		1000	$ 8.18
Newark	Each	1	$ 13.74
		10	$ 11.88
		100	$ 11.24
		250	$ 10.66
		500	$ 9.76
		1000	$ 9.25
		2500	$ 8.99
		5000	$ 8.74

Description

General part information

buccaneer-400 Series

The PX0410/08P/6065 is a 8-pole Circular Connector with 2.5mm contact engagement for electrical integrity, pin contacts, UL94V-0 flame-retardant polyamide moulding material and contact inserts are part of body moulding. A full range of environmentally sealed circular connectors designed to provide secure and safe connections in harsh or hostile conditions.
