APH-SMAP-TNCP

Obsolete

Amphenol RF

CONN ADAPT SMA PLUG TO TNC PLUG

Search across all available documentation for this part.

Obsolete

Amphenol RF

CONN ADAPT SMA PLUG TO TNC PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	APH-SMAP-TNCP

Adapter Series	SMA to TNC
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Contact Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Adapter Type	Dielectric Material	Frequency - Max [Max]	Body Material	Adapter Series	Fastening Type	Style	Mounting Type	Impedance	Conversion Type	Center Contact Plating	Convert To (Adapter End)	Center Gender
Amphenol RF APH-SMAP-MCXJ	Beryllium Copper	Gold	-65 ░C	165 °C	SMA Plug Male Pin	Plug to Jack	Polytetrafluoroethylene (PTFE)	6000 MHz	Brass	SMA to MCX	Snap-On Threaded	Straight	Free Hanging (In-Line)	50 Ohms	Between Series	Gold	Female Socket MCX Jack
Amphenol RF APH-SMAP-MCXP	Beryllium Copper	Gold	-65 ░C	165 °C	SMA Plug Male Pin	Plug to Plug	Polytetrafluoroethylene (PTFE)	6000 MHz	Brass	SMA to MCX	Snap-On Threaded	Straight	Free Hanging (In-Line)	50 Ohms	Between Series	Gold	Male Pin MCX Plug	Male to Male
Amphenol RF APH-SMAP-SMBP	Beryllium Copper	Gold	-65 ░C	165 °C	SMA Plug Male Pin	Plug to Plug	Polytetrafluoroethylene (PTFE)	10 GHz	Brass	SMA to SMB	Snap-On Threaded	Straight	Free Hanging (In-Line)	50 Ohms	Between Series	Gold	Female Socket SMB Plug
Amphenol RF APH-SMAP-MUHFJ	Phosphor Bronze	Nickel	-65 ░C	165 °C	SMA Plug Male Pin	Plug to Jack	Polytetrafluoroethylene (PTFE)	2.5 GHz	Brass	SMA to UHF		Straight	Free Hanging (In-Line)	50 Ohms	Between Series	Gold	Female Socket UHF Mini Jack
Amphenol RF APH-SMAP-TNCP	Brass	Nickel	-65 ░C	165 °C	SMA Plug Male Pin	Plug to Plug	Polytetrafluoroethylene (PTFE)	11 GHz	Brass	SMA to TNC		Straight	Free Hanging (In-Line)	50 Ohms	Between Series	Gold	Male Pin TNC Plug	Male to Male

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

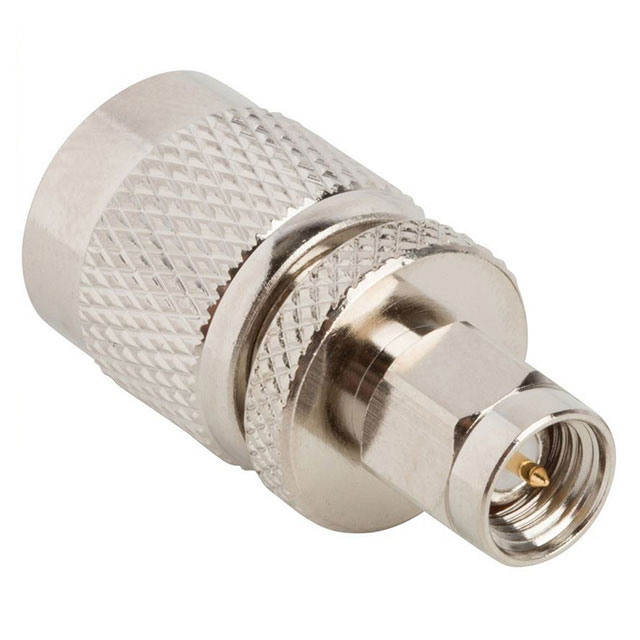

Adapter Coaxial Connector SMA Plug, Male Pin To TNC Plug, Male Pin 50 Ohms
