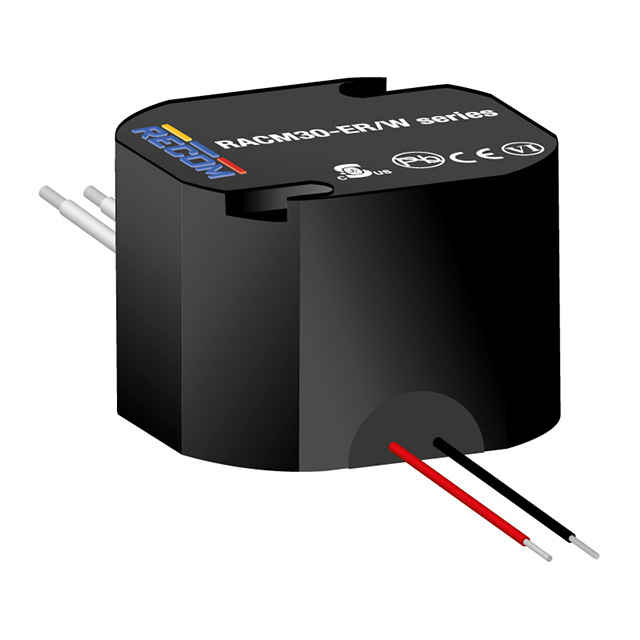

RACM30-24SER/W

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, HOUSEHOLD & MEDICAL, 1 OUTPUT, 30 W, 24 V, 1.25 A

Search across all available documentation for this part.

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, HOUSEHOLD & MEDICAL, 1 OUTPUT, 30 W, 24 V, 1.25 A

Technical Specifications

Parameters and characteristics for this part

Specification	RACM30-24SER/W

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	1.25 A
Efficiency	89 %
Features	IP68, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	30 W
Size / Dimension [x]	53 mm
Size / Dimension [x]	2.09 in
Size / Dimension [y]	51 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4.4 kV
Voltage - Output 1	24 V

AC/DC Power Modules 30W 90-264Vin 24Vout 1.25A IP68MED

Part	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Power (Watts)	Type	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Applications	Voltage - Isolation
RECOM Power RACM30-24SER/W	1	IP68 Universal Input	-20 °C	70 °C	1.25 A	30 W	Enclosed	Chassis Mount	1.34 in	53 mm	51 mm	2.09 in	34 mm	2 in	89 %	24 V	90 VAC	264 VAC	CE	Household Appliances ITE (Commercial) Medical	4.4 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC Power Modules 30W 90-264Vin 24Vout 1.25A IP68MED
