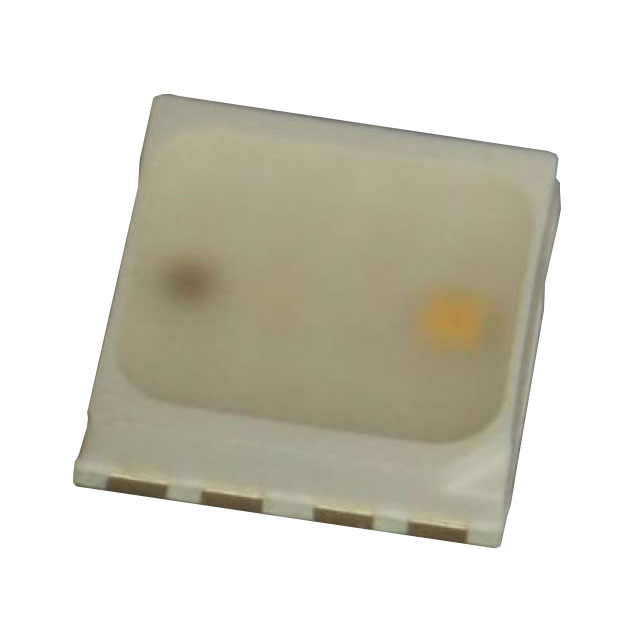

CLQ6A-TKW-C1L1R1H1QBB7935DD3

Obsolete

Cree LED

LED RGBW 8PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

CLQ6A-TKW-C1L1R1H1QBB7935DD3

Obsolete

Cree LED

LED RGBW 8PLCC SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLQ6A-TKW-C1L1R1H1QBB7935DD3

Color	Green, Blue, White, Red
Configuration	Independent
Current - Test	100 mA, 100 mA, 100 mA, 100 mA
Height (Max) [Max]	1.2 mm
Lens Style	Oval with Flat Top
Millicandela Rating [custom]	10400 mcd
Millicandela Rating [custom]	8200 mcd
Millicandela Rating [custom]	3000 mcd
Millicandela Rating [custom]	4500 mcd
Mounting Type	Surface Mount
Package / Case	8-SMD, No Lead
Size / Dimension [x]	5 mm
Size / Dimension [y]	5.2 mm
Supplier Device Package	8-PLCC
Voltage - Forward (Vf) (Typ) [custom]	2.9 V
Voltage - Forward (Vf) (Typ) [custom]	3 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V
Wavelength - Dominant	528 nm, 468 nm, 622 nm

CLQ6A Series

Part	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Configuration	Mounting Type	Supplier Device Package	Height (Max) [Max]	Lens Style	Wavelength - Dominant	Current - Test	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]
Cree LED CLQ6A-TKW-S1L1R1H1QBB7935BB3	10400 mcd	8200 mcd	3000 mcd	4500 mcd	Blue Green Red White	2.9 V	3 V	2.1 V	3.1 V	8-SMD No Lead	5.2 mm	5 mm	Independent	Surface Mount	8-PLCC	1.2 mm	Oval with Flat Top	468 nm 528 nm 622 nm	100 mA 100 mA 100 mA 100 mA
Cree LED CLQ6A-TKW-S1L1R1H1QBB7935AA3	10400 mcd	8200 mcd	3000 mcd	4500 mcd	Blue Green Red White	2.9 V	3 V	2.1 V	3.1 V	8-SMD No Lead	5.2 mm	5 mm	Independent	Surface Mount	8-PLCC	1.2 mm	Oval with Flat Top	468 nm 528 nm 622 nm	100 mA 100 mA 100 mA 100 mA
Cree LED CLQ6A-FKW-C1L1P1R1U1H1LBB79453	11915 mcd		3002 mcd	5015 mcd	Blue Green Red		3 V	2.1 V	3.1 V	8-SMD No Lead	4.2 mm	5 mm	Independent	Surface Mount		1.2 mm	Rectangle with Flat Top	470 nm 528 nm 622 nm		100 mA	100 mA	100 mA
Cree LED CLQ6A-FKW-C1L11R11H1BB7C4S3	11915 mcd		3002 mcd	5015 mcd	Blue Green Red		3 V	2.1 V	3.1 V	8-SMD No Lead	4.2 mm	5 mm	Independent	Surface Mount		1.2 mm	Rectangle with Flat Top	470 nm 528 nm 622 nm		100 mA	100 mA	100 mA
Cree LED CLQ6A-TKW-C1L1R1H1QBB7935AA3	10400 mcd	8200 mcd	3000 mcd	4500 mcd	Blue Green Red White	2.9 V	3 V	2.1 V	3.1 V	8-SMD No Lead	5.2 mm	5 mm	Independent	Surface Mount	8-PLCC	1.2 mm	Oval with Flat Top	468 nm 528 nm 622 nm	100 mA 100 mA 100 mA 100 mA
Cree LED CLQ6A-TKW-C1L1R1H1QBB7935CC3	10400 mcd	8200 mcd	3000 mcd	4500 mcd	Blue Green Red White	2.9 V	3 V	2.1 V	3.1 V	8-SMD No Lead	5.2 mm	5 mm	Independent	Surface Mount	8-PLCC	1.2 mm	Oval with Flat Top		100 mA
Cree LED CLQ6A-TKW-C1L1R1H1QBB7935DD3	10400 mcd	8200 mcd	3000 mcd	4500 mcd	Blue Green Red White	2.9 V	3 V	2.1 V	3.1 V	8-SMD No Lead	5.2 mm	5 mm	Independent	Surface Mount	8-PLCC	1.2 mm	Oval with Flat Top	468 nm 528 nm 622 nm	100 mA 100 mA 100 mA 100 mA
Cree LED CLQ6A-TKW-S1L1R1H1QBB7935CC3	10400 mcd	8200 mcd	3000 mcd	4500 mcd	Blue Green Red White	2.9 V	3 V	2.1 V	3.1 V	8-SMD No Lead	5.2 mm	5 mm	Independent	Surface Mount	8-PLCC	1.2 mm	Oval with Flat Top	468 nm 528 nm 622 nm	100 mA 100 mA 100 mA 100 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CLQ6A Series

Red, Green, Blue, White (RGBW) 622nm Red, 528nm Green, 468nm Blue LED Indication - Discrete 2.1V Red, 3V Green, 3.1V Blue, 2.9V White 8-SMD, No Lead

Documents

Technical documentation and resources

No documents available
