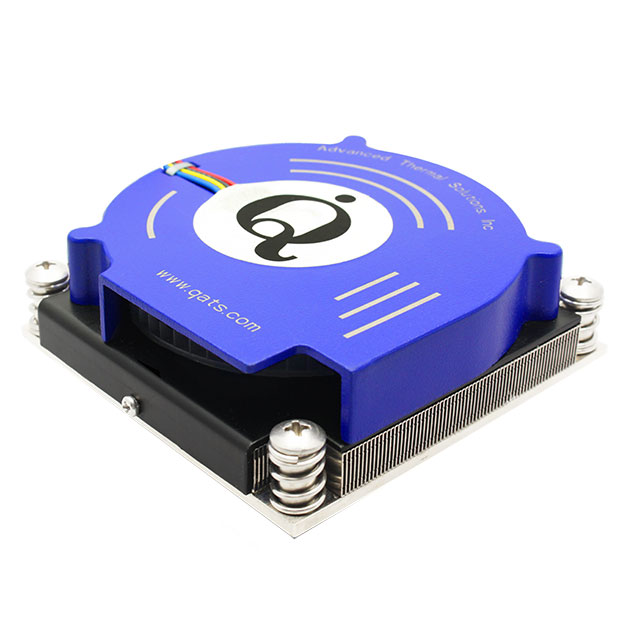

ATS-UC-QFLOW-200

Active

Advanced Thermal Solutions Inc.

HEAT SINKS ULTRA COOL QUADFLOW HEAT SINK, 1U, CU FINS, NICKEL PLATE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-UC-QFLOW-200

Active

Advanced Thermal Solutions Inc.

HEAT SINKS ULTRA COOL QUADFLOW HEAT SINK, 1U, CU FINS, NICKEL PLATE

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-UC-QFLOW-200

Attachment Method	Push Pin
Fin Height [z]	29 mm
Fin Height [z]	1.142 in
Length	3.637 in
Length	92.38 mm
Material	Copper
Material Finish	Nickel
Package Cooled [custom]	Intel LGA2011 CPU Cooler, Intel LGA2066 CPU Cooler
Shape	Square, Fins
Type	Top Mount, Zipper Fin
Width [x]	92.11 mm
Width [x]	3.626 in

ATS-UC Series

Heat Sinks Ultra Cool CPU Heat Sink, Fanless, Copper

Part	Material	Width [x]	Width [x]	Attachment Method	Material Finish	Shape	Package Cooled [custom]	Length	Length	Type	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]
Advanced Thermal Solutions Inc. ATS-UC-DFLOW-VC-200	Copper	92.11 mm	3.626 in	Push Pin	Nickel	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.637 in	92.38 mm	Top Mount Zipper Fin	29 mm	1.142 in
Advanced Thermal Solutions Inc. ATS-UC-NF-101	Aluminum			Push Pin	Blue Anodized	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.543 in	90 mm	Top Mount Skived	28 mm	1.102 in	3.543 "	90 mm
Advanced Thermal Solutions Inc. ATS-UC-DFLOW-200	Copper	92.11 mm	3.626 in	Push Pin	Nickel	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.637 in	92.38 mm	Top Mount Zipper Fin	29 mm	1.142 in
Advanced Thermal Solutions Inc. ATS-UC-QFLOW-100	Aluminum	92.11 mm	3.626 in	Push Pin	Nickel	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.637 in	92.38 mm	Top Mount Zipper Fin	29 mm	1.142 in
Advanced Thermal Solutions Inc. ATS-UC-QFLOW-200	Copper	92.11 mm	3.626 in	Push Pin	Nickel	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.637 in	92.38 mm	Top Mount Zipper Fin	29 mm	1.142 in
Advanced Thermal Solutions Inc. ATS-UC-NF-100	Aluminum			Push Pin	Blue Anodized	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.543 in	90 mm	Top Mount Skived	28 mm	1.102 in	3.543 "	90 mm
Advanced Thermal Solutions Inc. ATS-UC-QFLOW-VC-200	Copper	92.11 mm	3.626 in	Push Pin	Nickel	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.637 in	92.38 mm	Top Mount Zipper Fin	29 mm	1.142 in
Advanced Thermal Solutions Inc. ATS-UC-DFLOW-100	Aluminum	92.11 mm	3.626 in	Push Pin	Nickel	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.637 in	92.38 mm	Top Mount Zipper Fin	29 mm	1.142 in
Advanced Thermal Solutions Inc. ATS-UC-NF-201	Copper			Push Pin	Nickel	Fins Square	Intel LGA2011 CPU Cooler Intel LGA2066 CPU Cooler	3.543 in	90 mm	Top Mount Skived	28 mm	1.102 in	3.543 "	90 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 160.87
		10	$ 150.82
		25	$ 140.76
		50	$ 135.74
Sager	N/A	1	$ 173.20
		5	$ 162.86
		10	$ 155.88
		25	$ 149.48

Description

General part information

ATS-UC Series

Heat Sinks Ultra Cool CPU Heat Sink, Fanless, Copper

Documents

Technical documentation and resources

Datasheet

Document
