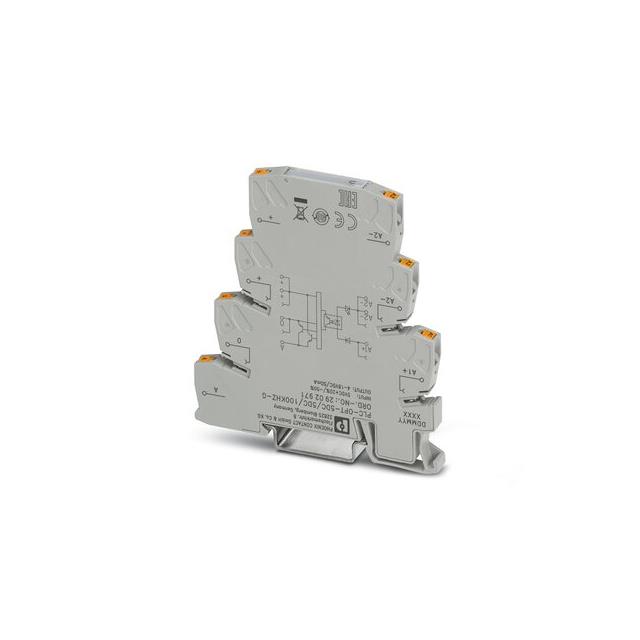

2902971

Active

Phoenix Contact

RELAY: SOLID STATE; SPST-NO; UCOIL: 5VDC; 50MA; 0.05A/18VDC

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY: SOLID STATE; SPST-NO; UCOIL: 5VDC; 50MA; 0.05A/18VDC

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Termination Style	Approval Agency	Package / Case	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Voltage - Input
Phoenix Contact 2902973	DC	Spring Terminal	CE DNV UKCA	Module	50 mA	-25 °C	60 °C	30 V	14 V	DIN Rail	5 VDC
Phoenix Contact 2902971	DC	Spring Terminal	CE DNV UKCA	Module	50 mA	-25 °C	60 °C	18 V	4 V	DIN Rail	5 VDC
Phoenix Contact 2902974	DC	Spring Terminal	CE DNV UKCA	Module	50 mA	-25 °C	60 °C	30 V	14 V	DIN Rail	24 V
Phoenix Contact 2902972	DC	Spring Terminal	CE DNV UKCA	Module	50 mA	-25 °C	60 °C	18 V	4 V	DIN Rail	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.42

General part information

Solid State SPST-NO (1 Form A) Module

Technical documentation and resources
