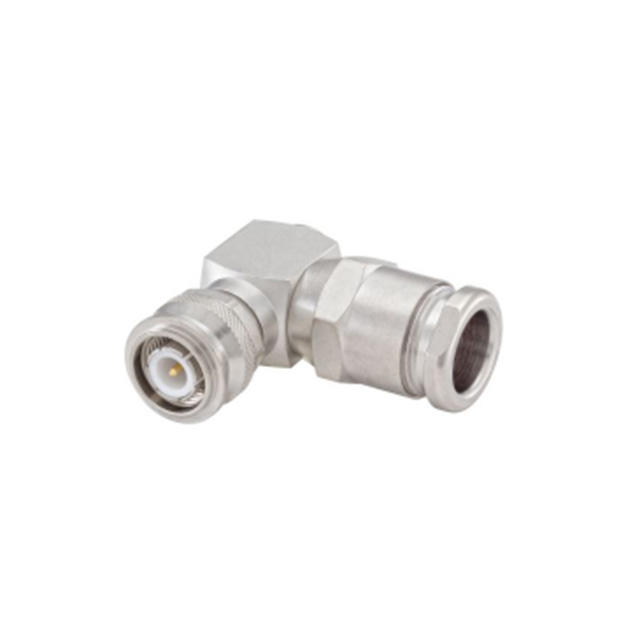

56S201-015N5

Active

Rosenberger

CONN TNC PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN TNC PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	56S201-015N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	214, RG-213
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Clamp, 1 End Cap, 1 Gasket, 1 Washer, 1 Connector, 1 Contact
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Impedance	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Connector Style	Contact Termination	Body Material	Shield Termination	Mating Cycles	Housing Color	Number of Ports	Cable Group	Voltage Rating	Center Contact Material	Includes	Connector Type	Center Contact Plating	Body Finish	Mounting Type
Rosenberger 56S201-015N5	50 Ohms	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	10 GHz	TNC	Solder	Brass	Clamp	500	Silver	1	214 RG-213	500 V	Brass	1 Clamp 1 Connector 1 Contact 1 End Cap 1 Gasket 1 Nut 1 Washer	Male Pin Plug	Gold	White Bronze	Free Hanging (In-Line) Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
