Technical Specifications
Parameters and characteristics for this part
| Specification | 0035.9640.7 |
|---|---|
| Color | Yellow |
| Configuration | Single |
| Current | 30 mA |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 12 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2.4 V |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.21 | |
| 50 | $ 1.63 | |||
Description
General part information
0035.9640 Series

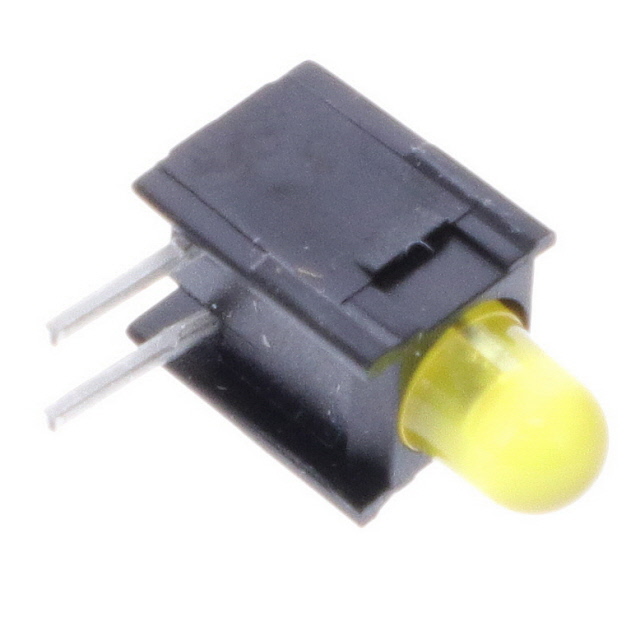

LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow 2.4V 30mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
