19370480448

Active

HARTING Technology Group

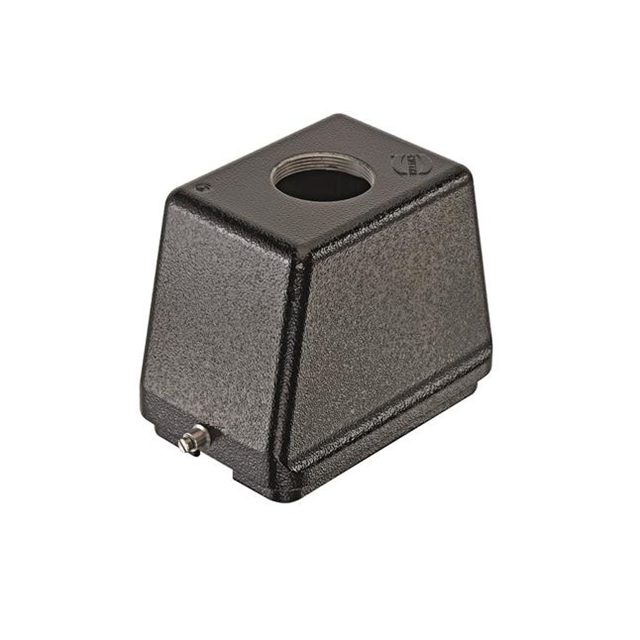

ENCLOSURE FOR CONNECTORS: HDC; SIZE 48B (2 X 24B); FOR CABLE

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 48B (2 X 24B); FOR CABLE

Technical Specifications

Parameters and characteristics for this part

Specification	19370480448

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	48 B
Size / Dimension [x]	132 mm
Size / Dimension [x]	5.197 in
Size / Dimension [y]	3.543 in
Size / Dimension [y]	90 mm
Size / Dimension [z]	3.839 in
Size / Dimension [z]	97.5 mm
Style	Top Entry

Part	Lock Location	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Style	Housing Finish	Size	Connector Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Housing Material
HARTING Technology Group 19370480548	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Black	Side Entry	Powder Coated	48 B	Hood	3.543 in	3.839 in	97.5 mm	132 mm	5.197 in	90 mm	Aluminum Die Cast
HARTING Technology Group 19370480448	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Black	Top Entry	Powder Coated	48 B	Hood	3.543 in	3.839 in	97.5 mm	132 mm	5.197 in	90 mm	Aluminum Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M40 48B IP65 - Dust Tight, Water Resistant
