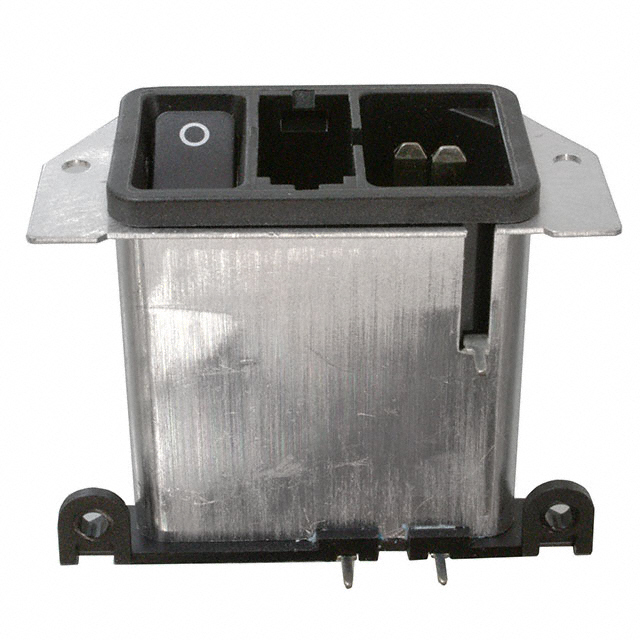

DD22.2321.1111

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DD22.2321.1111

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	2 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	49.6 mm
Panel Cutout Dimensions [y]	30.1 mm
Panel Thickness	3 mm
Panel Thickness	0.118 in
Switch Features	Switch On-Off
Termination	Solder, Quick Connect - 0.250" (6.3mm)
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Voltage Rating - Appliance Inlet	Mounting Type	Ingress Protection	Panel Thickness	Panel Thickness	Switch Features	Connector Style	Accomodates a Fuse	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Filter Type	Current Rating - Filter	Approval Agency
SCHURTER Inc. DD22.2321.1111	Receptacle Male Blades - Module	10 A	Drawer Sold Separate	250 VAC	Panel Mount Flange Through Hole Right Angle	IP40	3 mm	0.118 in	Switch On-Off	IEC 320-C14		UL94 V-0	30.1 mm	49.6 mm	Solder Quick Connect - 0.250" (6.3mm)	Filtered (EMI RFI) - Commercial Medical	2 A	cULus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
