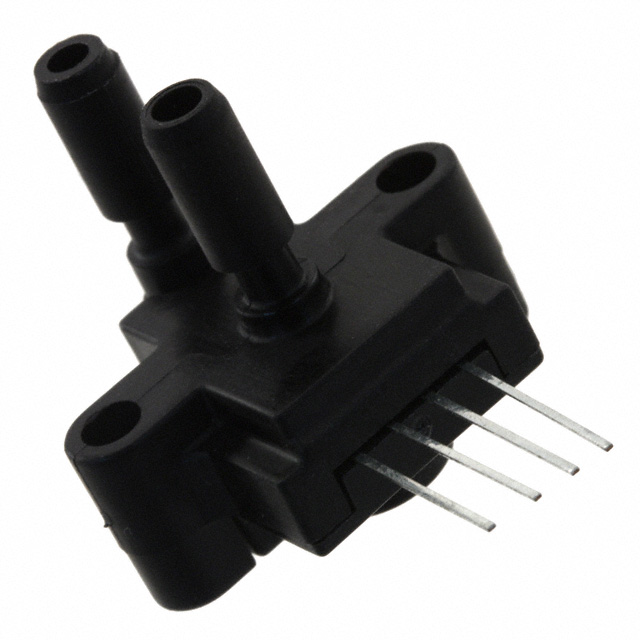

SSCSNBN002NDAA5

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.07PSID 0.19" 4.5V 4SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Pressure Sensors Line Guide

SSCSNBN002NDAA5

Active

Honeywell Sensing and Productivity Solutions

SENSOR 0.07PSID 0.19" 4.5V 4SIP

Deep-Dive with AI

DocumentsDatasheet Pressure Sensors Line Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSCSNBN002NDAA5

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Mounting Type	Through Hole
Operating Pressure	0.5 kPa
Operating Pressure	0.07 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	4-SIP, Dual Ports, Same Side
Port Size	4.826 mm, 4.8 mm
Port Size	Male, Tube, Dual
Port Style	Barbless
Pressure Type	Differential
Supplier Device Package	4-SIP
Termination Style	PC Pin
Voltage - Supply [Max]	5.05 V
Voltage - Supply [Min]	4.95 V

SSCSNBN Series

Part	Port Size	Port Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Port Style	Pressure Type	Package / Case	Applications	Mounting Type	Operating Pressure	Operating Pressure	Features	Accuracy	Output [Min]	Output [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]
Honeywell Sensing and Productivity Solutions SSCSNBN002NDAA5	4.8 mm 4.826 mm	Dual Male Tube	5.05 V	4.95 V	Analog Voltage	Barbless	Differential	4-SIP Dual Ports Same Side	Board Mount	Through Hole	0.5 kPa	0.07 PSI	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V	4-SIP	85 °C	-40 °C	PC Pin
Honeywell Sensing and Productivity Solutions SSCSNBN001BAAA5	4.8 mm 4.826 mm	Dual Male Tube	5.25 V	4.75 V	Analog Voltage	Barbless		4-SIP Dual Ports Same Side	Board Mount	Through Hole	100 kPa	14.5 PSI	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V	4-SIP	85 °C	-40 °C	PC Pin	200 kPa	29.01 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN150PAAB5	4.8 mm 4.826 mm	Dual Male Tube	5.25 V	4.75 V	Analog Voltage	Barbless		4-SIP Dual Ports Same Side	Board Mount	Through Hole	1034.21 kPa	150 PSI	Amplified Output Temperature Compensated	0.25 %	0.25 V	4.75 V	4-SIP	85 °C	-40 °C	PC Pin	1723.69 kPa	250 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN010NGAA5	4.8 mm 4.826 mm	Dual Male Tube	5.05 V	4.95 V	Analog Voltage	Barbless	Vented Gauge	4-SIP Dual Ports Same Side	Board Mount	Through Hole	2.49 kPa	0.36 PSI	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V	4-SIP	85 °C	-40 °C	PC Pin	74.75 kPa	10.84 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN010BGAA5	4.8 mm 4.826 mm	Dual Male Tube	5.25 V	4.75 V	Analog Voltage	Barbless	Vented Gauge	4-SIP Dual Ports Same Side	Board Mount	Through Hole	10 bar	145.04 PSI	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V	4-SIP	85 °C	-40 °C	PC Pin	1700 kPa	246.56 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN030PAAA5	4.8 mm 4.826 mm	Dual Male Tube	5.25 V	4.75 V	Analog Voltage	Barbless		4-SIP Dual Ports Same Side	Board Mount	Through Hole	206.84 kPa	30 PSI	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V	4-SIP	85 °C	-40 °C	PC Pin	413.69 kPa	60 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN001NDAA5	4.8 mm 4.826 mm	Dual Male Tube	5.05 V	4.95 V	Analog Voltage	Barbless	Differential	4-SIP Dual Ports Same Side	Board Mount	Through Hole	0.25 kPa	0.04 PSI	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V	4-SIP	85 °C	-40 °C	PC Pin
Honeywell Sensing and Productivity Solutions SSCSNBN001PGAA5	4.8 mm 4.826 mm	Dual Male Tube	5.25 V	4.75 V	Analog Voltage	Barbless	Vented Gauge	4-SIP Dual Ports Same Side	Board Mount	Through Hole	6.89 kPa	1 PSI	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V	4-SIP	85 °C	-40 °C	PC Pin	68.95 kPa	10 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN150PGAB5	4.8 mm 4.826 mm	Dual Male Tube	5.25 V	4.75 V	Analog Voltage	Barbless	Vented Gauge	4-SIP Dual Ports Same Side	Board Mount	Through Hole	1034.21 kPa	150 PSI	Amplified Output Temperature Compensated	0.25 %	0.25 V	4.75 V	4-SIP	85 °C	-40 °C	PC Pin	1723.69 kPa	250 PSI
Honeywell Sensing and Productivity Solutions SSCSNBN100MGAA5	4.8 mm 4.826 mm	Dual Male Tube	5.25 V	4.75 V	Analog Voltage	Barbless	Vented Gauge	4-SIP Dual Ports Same Side	Board Mount	Through Hole	10 kPa	1.45 PSI	Amplified Output Temperature Compensated	0.25 %	0.5 V	4.5 V	4-SIP	85 °C	-40 °C	PC Pin	85 kPa	12.33 PSI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 50.34

Description

General part information

SSCSNBN Series

Pressure Sensor ±0.07PSI (±0.5kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0.5 V ~ 4.5 V 4-SIP, Dual Ports, Same Side
