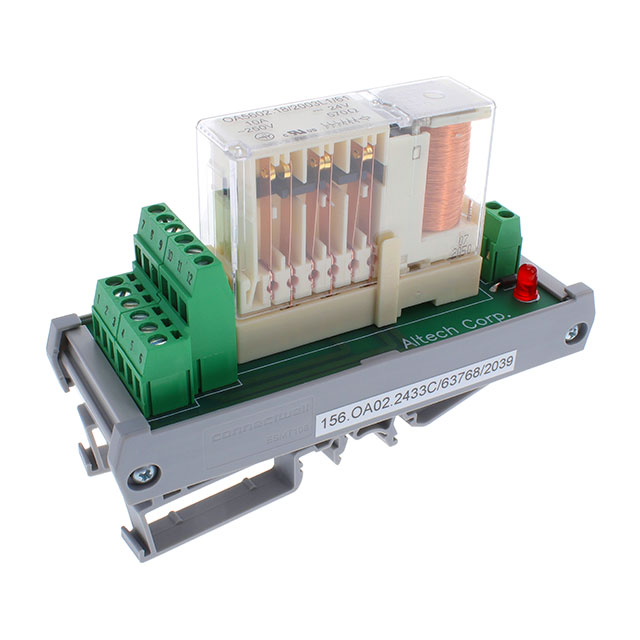

156.OA02.2433C

Active

TE Connectivity Raychem Cable Protection

RELAY SAFETY 6PST 10A 24V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RELAY SAFETY 6PST 10A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Contact Rating (Current)	Must Operate Voltage	Termination Style	Contact Form	Coil Current	Mounting Type	Switching Voltage [Max]	Operate Time	Coil Power	Coil Resistance	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection 156.OA02.2442C	5 ms	10 A	16.8 VDC	Screw Terminal	6PST-4NO/2NC (4 Form A 2 Form B)	42.1 mA	DIN Rail	250 VDC 400 VAC	27 ms	1.01 W	570 Ohms	24 VDC	-40 °C	80 C
Altech Corporation 156.OA02.2442C	5 ms	10 A	16.8 VDC	Screw Terminal	6PST-4NO/2NC (4 Form A 2 Form B)	42.1 mA	DIN Rail	250 VDC 400 VAC	27 ms	1.01 W	570 Ohms	24 VDC	-40 °C	80 C
Altech Corporation 156.OA02.1224C	5 ms	10 A	8.4 VDC	Screw Terminal	6PST-4NC/2NO (4 Form B 2 Form A)	85.7 mA	DIN Rail	250 VDC 400 VAC	27 ms	1.03 W	140 Ohms	12 VDC	-40 °C	80 C
Altech Corporation 156.OA02.1233C	5 ms	10 A	8.4 VDC	Screw Terminal		85.7 mA	DIN Rail	250 VDC 400 VAC	27 ms	1.03 W	140 Ohms	12 VDC	-40 °C	80 C
TE Connectivity Raychem Cable Protection 156.OA02.2433C	5 ms	10 A	16.8 VDC	Screw Terminal		42.1 mA	DIN Rail	250 VDC 400 VAC	27 ms	1.01 W	570 Ohms	24 VDC	-40 °C	80 C
Altech Corporation 156.OA02.2433C	5 ms	10 A	16.8 VDC	Screw Terminal		42.1 mA	DIN Rail	250 VDC 400 VAC	27 ms	1.01 W	570 Ohms	24 VDC	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY SAFETY 6PST 10A 24V

Technical documentation and resources
