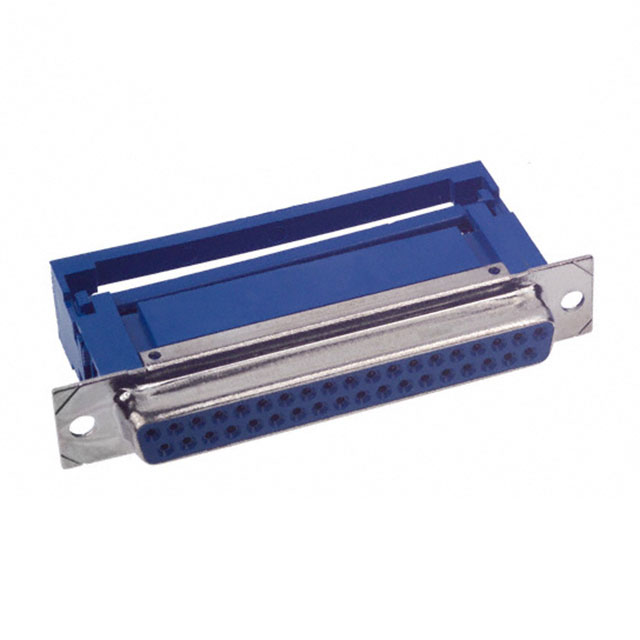

CWR-281-37-0203

Active

CW Industries

CONN D-SUB PLUG 37POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

CWR-281-37-0203

Active

CW Industries

CONN D-SUB PLUG 37POS IDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-281-37-0203

Color	Blue
Connector Style	D-Sub
Connector Type	Female Sockets, Plug
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Feed Through, Strain Relief, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	27.5 AWG

CWR-281 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Number of Rows	Material Flammability Rating	Contact Finish	Number of Positions	Connector Style	Contact Material	Dielectric Material	Contact Type	Connector Type	Flange Feature	Mounting Type	Features	Color	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Shell Size, Connector Layout	Shell Size, Connector Layout
CW Industries CWR-281-09-0003	30 AWG	27.5 AWG	2	UL94 V-0	Tin	9	D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	2.54 µm	100 µin	DE E	1	IDC Ribbon Cable
CW Industries CWR-281-25-0003	30 AWG	27.5 AWG	2	UL94 V-0	Tin		D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	2.54 µm	100 µin	B DB	3	IDC Ribbon Cable
CW Industries CWR-281-37-0021	30 AWG	27.5 AWG	2	UL94 V-0	Gold	37	D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	0.76 Ám	30 Áin			IDC Ribbon Cable	4 (DC C)
CW Industries CWR-281-25-0000	30 AWG	27.5 AWG	2	UL94 V-0	Gold		D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	0.25 Ám	10 Áin	B DB	3	IDC Ribbon Cable
CW Industries CWR-281-09-0000	30 AWG	27.5 AWG	2	UL94 V-0	Gold	9	D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	0.25 Ám	10 Áin	DE E	1	IDC Ribbon Cable
CW Industries CWR-281-25-0021	30 AWG	27.5 AWG	2	UL94 V-0	Gold		D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	0.76 Ám	30 Áin	B DB	3	IDC Ribbon Cable
CW Industries CWR-281-15-0000	30 AWG	27.5 AWG	2	UL94 V-0	Gold	15	D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	0.25 Ám	10 Áin			IDC Ribbon Cable		2
CW Industries CWR-281-37-0203	30 AWG	27.5 AWG	2	UL94 V-0	Tin	37	D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	2.54 µm	100 µin			IDC Ribbon Cable	4 (DC C)
CW Industries CWR-281-15-0003	30 AWG	27.5 AWG	2	UL94 V-0	Tin	15	D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	2.54 µm	100 µin			IDC Ribbon Cable		2
CW Industries CWR-281-25-0203	30 AWG	27.5 AWG	2	UL94 V-0	Tin		D-Sub	Phosphor Bronze	Thermoplastic	Signal	Female Sockets Plug	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Feed Through Shielded Strain Relief	Blue	2.54 µm	100 µin	B DB	3	IDC Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.78
		10	$ 11.37
		25	$ 10.28
		50	$ 9.55
		100	$ 8.89
		250	$ 8.28

Description

General part information

CWR-281 Series

37 Position D-Sub Plug, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
