PM3BCW12.0-CC2
ActiveBivar Inc.

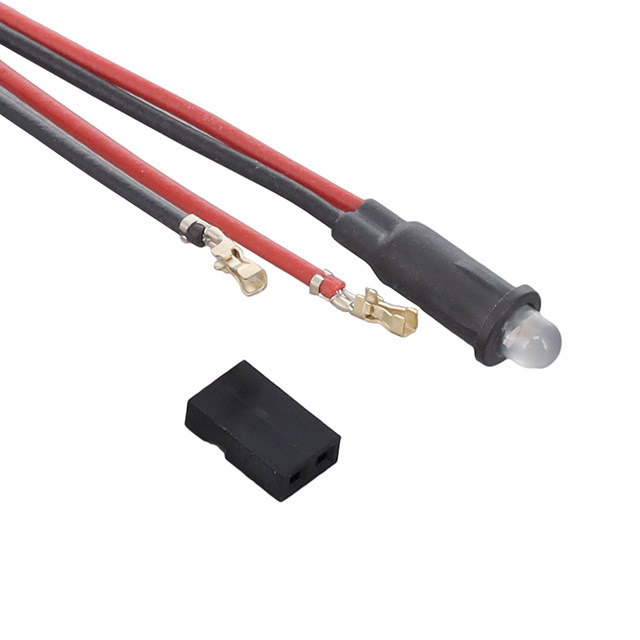

PANEL MOUNT LED ASSEMBLY, 3 MM HE RED/GREEN LED W\ WHITE DIFFUSED LENS, 12 IN. WIRE, 2MM CONNECTOR, / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM3BCW12.0-CC2
ActiveBivar Inc.
PANEL MOUNT LED ASSEMBLY, 3 MM HE RED/GREEN LED W\ WHITE DIFFUSED LENS, 12 IN. WIRE, 2MM CONNECTOR, / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM3BCW12.0-CC2 |
|---|---|
| Current | 20 mA, 20 mA |
| Lamp Color | Green, Red |
| Lens Color | White |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 6mcd Red, 6mcd Green |
| Panel Cutout Dimensions [x] | 0.16 in |
| Panel Cutout Dimensions [x] | 4.06 mm |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 12" (304.80mm) |
| Type | LED |
| Viewing Angle | 45 ° |
| Voltage | 2 V, 2.1 V |
| Wavelength - Peak | 568 nm, 625 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PM3BCW12.0 Series
LED Panel Indicator Green, Red Diffused 45° 2.1V Green, 2V Red 20mA Green, 20mA Red Wire Leads - 12" (304.80mm)
