0298150.TXN
ActiveLittelfuse/Commercial Vehicle Products

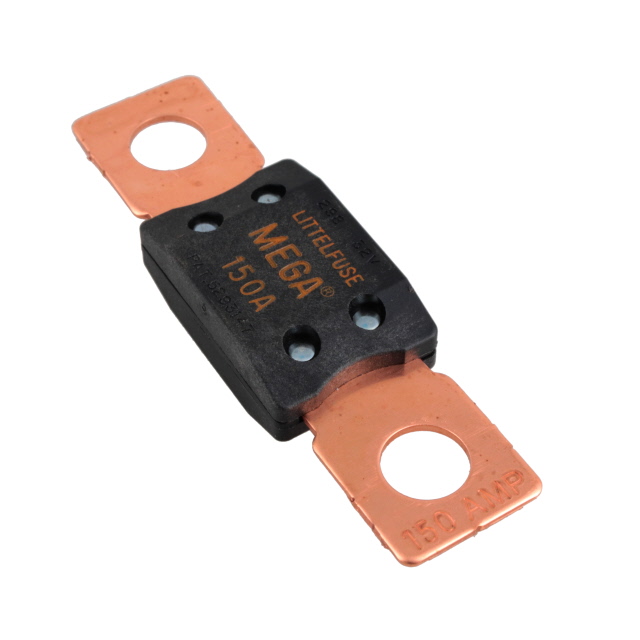

FUSE - MEGA 32V, 150A, 10 PC BOX/ BOX ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
0298150.TXN
ActiveLittelfuse/Commercial Vehicle Products
FUSE - MEGA 32V, 150A, 10 PC BOX/ BOX ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0298150.TXN |
|---|---|
| Breaking Capacity @ Rated Voltage | 2 kA |
| Current Rating (Amps) | 150 A |
| DC Cold Resistance | 0.352 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 100000 |
| Mounting Type | Bolt Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Auto Link |
| Size / Dimension [x] | 29.2 mm |
| Size / Dimension [x] | 1.149 in |
| Size / Dimension [y] | 19.05 mm |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 9.9 mm |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0298150.TXN Series
This 150 A MEGA® SLO-BLO® automotive fuse employs diffusion pill technology to provide time-delay circuit protection. Use it to ensure continuous current flow along heavy gauge wire harnesses, particularly those for batteries and alternators.
