EDAC Inc.

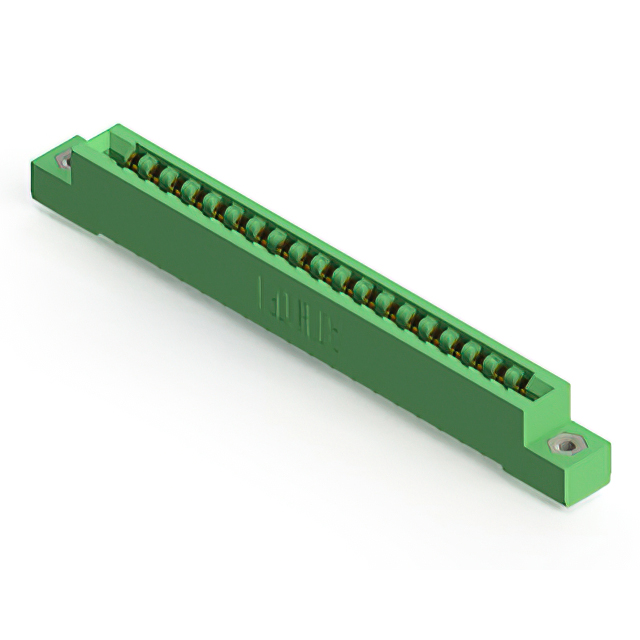

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-019-521-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 19 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-019-521-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	38
Number of Positions/Bay/Row [custom]	19
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

307-019 Series

...

Part	Contact Type	Read Out	Mounting Type	Number of Positions	Contact Material	Number of Positions/Bay/Row [custom]	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Contact Finish	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Color	Card Type	Contact Finish Thickness	Contact Finish Thickness	Features
EDAC Inc. 307-019-447-102	Semi Bellows	Single	Through Hole	19	Copper Alloy	19	1	1	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Single Edge
EDAC Inc. 307-019-521-108	Semi Bellows	Dual	Through Hole	38	Copper Alloy	19	1	2			4-40 Flush Mount Threaded Insert Top Opening	Gold	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge	10 Áin	0.25 Ám
EDAC Inc. 307-019-453-103	Semi Bellows	Dual	Through Hole Right Angle	38	Copper Alloy	19	1	2	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge
EDAC Inc. 307-019-431-107	Semi Bellows	Single	Through Hole	19	Copper Alloy	19	1	1			Flush Mount M3 Threaded Insert Top Opening	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Single Edge
EDAC Inc. 307-019-441-112	Semi Bellows	Dual	Through Hole	38	Copper Alloy	19	1	2	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge
EDAC Inc. 307-019-453-102	Semi Bellows	Dual	Through Hole Right Angle	38	Copper Alloy	19	1	2	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge
EDAC Inc. 307-019-457-168	Semi Bellows	Dual	Through Hole Right Angle	38	Copper Alloy	19	1	2			4-40 Flush Mount Threaded Insert Top Opening	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge			Card Guides
EDAC Inc. 307-019-557-108	Semi Bellows	Dual	Through Hole Right Angle	38	Copper Alloy	19	1	2			4-40 Flush Mount Threaded Insert Top Opening	Gold	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Dual Edge	10 Áin	0.25 Ám
EDAC Inc. 307-019-459-158	Semi Bellows	Single	Through Hole Right Angle	19	Copper Alloy	19	1	1			4-40 Flush Mount Threaded Insert Top Opening	Tin	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Single Edge			Card Guides
EDAC Inc. 307-019-559-158	Semi Bellows	Single	Through Hole Right Angle	19	Copper Alloy	19	1	1			4-40 Flush Mount Threaded Insert Top Opening	Gold	0.156 in	3.96 mm	-40 °C	105 ░C	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	Green	Non Specified - Single Edge	10 Áin	0.25 Ám	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 25.13
Newark	Each	1	$ 28.08
		100	$ 16.48
		250	$ 15.26
		500	$ 14.25
		1000	$ 10.74

Description

General part information

307-019 Series

38 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
