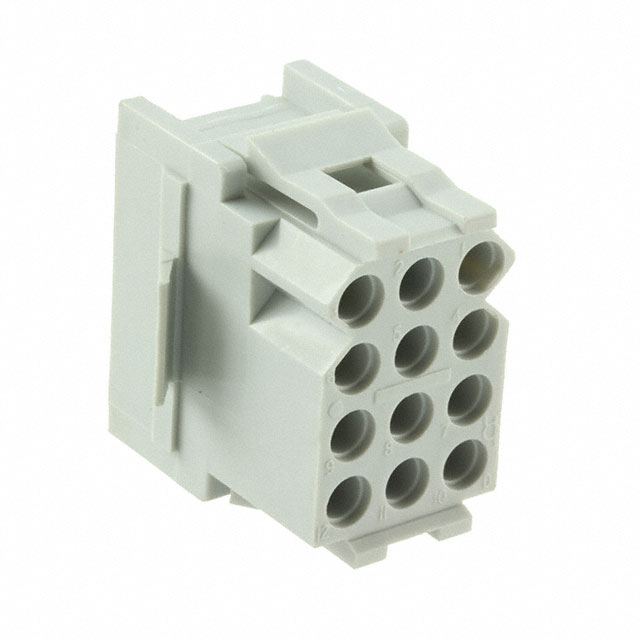

TFR12RA10

Active

ITT Cannon, LLC

CONN RCPT HSG 12POS 5.08MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSG 12POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch [x]	Pitch [x]	Note	Insulation Material	Features	Contact Type	Contact Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing	Row Spacing	Color	Fastening Type	Number of Positions
ITT Cannon, LLC TFR12PH10	Plug	0.2 in	5.08 mm	Contacts Not Included	Nylon Polyamide (PA)	Flame Retardant Hood Strain Relief	Male or Female	Crimp and Solder	Free Hanging (In-Line)	105 ░C	-55 °C	5.08 mm	0.2 in	Gray	Latch Lock	12
ITT Cannon, LLC TFR12RA10	Receptacle	0.2 in	5.08 mm	Contacts Not Included	Nylon Polyamide (PA)	Flame Retardant	Male or Female	Crimp and Solder	Panel Mount Snap-In	105 ░C	-55 °C	5.08 mm	0.2 in	Gray	Latch Holder	12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Receptacle Gray 0.200" (5.08mm)
