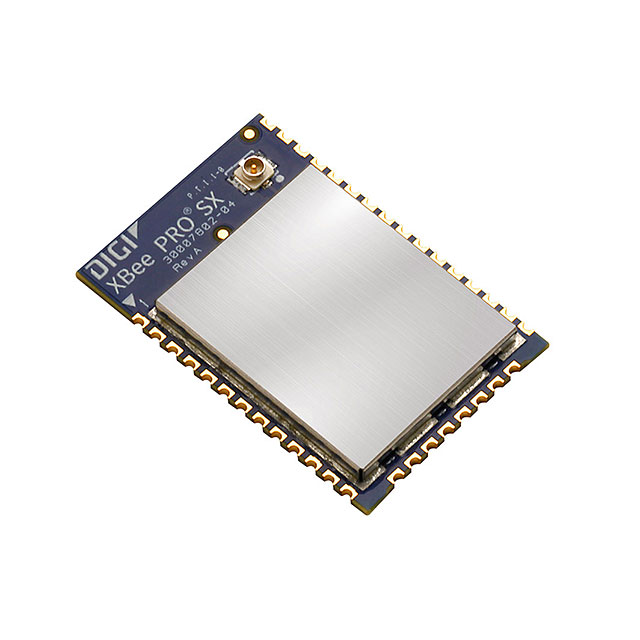

XBP9XT-DMUS-001

Active

Digi

RF TXRX MOD ISM<1GHZU.FL SMD

Search across all available documentation for this part.

Active

Digi

RF TXRX MOD ISM<1GHZU.FL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Sensitivity	Mounting Type	Modulation	Package / Case	Current - Transmitting [Min]	Current - Transmitting [Max]	Current - Receiving	Data Rate	Power - Output	RF Family/Standard	Frequency [Min]	Frequency [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Serial Interfaces	Current - Transmitting
Digi XBP9X-DMRS-011	-113 dBm	Surface Mount	FHSS GFSK	Module	330 mA	900 mA	40 mA	250 KBd	30 dBm	General ISM < 1GHz	902 MHz	928 MHz	2.4 V	3.6 V	Antenna Not Included U.FL	85 °C	-40 °C	ADF7023	UART
Digi XBP9XT-DPRS-001	-110 dBm	Surface Mount	FSK	Module			40 mA	125 kbps	13 dBm	General ISM < 1GHz	902 MHz	928 MHz			Antenna Not Included	85 °C	-40 °C		UART	900 mA
Digi XBP9XT-DMRS-001	-110 dBm	Surface Mount	FSK	Module			40 mA	125 kbps	13 dBm	General ISM < 1GHz	902 MHz	928 MHz			Antenna Not Included	85 °C	-40 °C		UART	900 mA
Digi XBP9XT-DMUS-001	-110 dBm	Surface Mount	FSK	Module			40 mA	125 kbps	13 dBm	General ISM < 1GHz	902 MHz	928 MHz			Antenna Not Included U.FL	85 °C	-40 °C		UART	900 mA
Digi XBP9X-DMUS-001	-113 dBm	Surface Mount	GFSK	Module			40 mA	250 KBd	30 dBm	General ISM < 1GHz	902 MHz	928 MHz	2.4 V	3.6 V	Antenna Not Included U.FL	85 °C	-40 °C	ADF7023		55 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 112.59

General part information

General ISM < 1GHz Transceiver Module 902MHz ~ 928MHz Antenna Not Included, U.FL Surface Mount
