1001-009-01000

Obsolete

CnC Tech, LLC

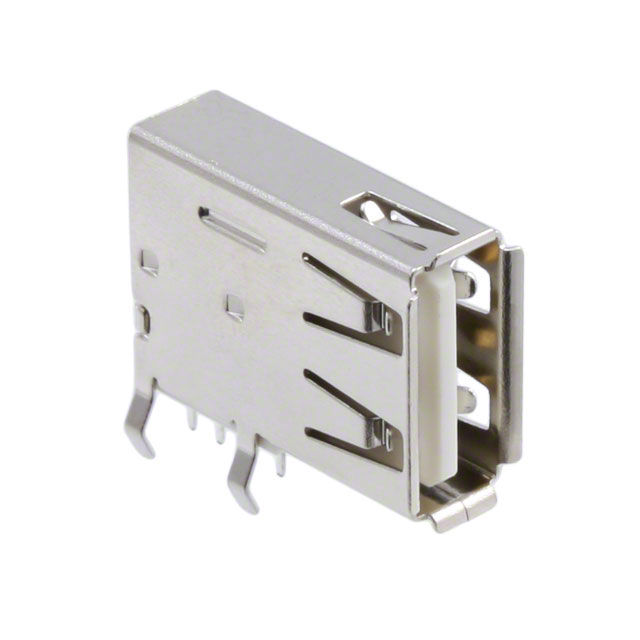

CONN RCPT USB1.1 TYPEA 4POS R/A

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CONN RCPT USB1.1 TYPEA 4POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	1001-009-01000

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mounting Feature	Vertical, Flag
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Steel, Brass
Specifications	USB 1.1
Termination	Solder
Voltage - Rated	30 V

Part	Termination	Number of Ports	Current Rating (Amps)	Mounting Feature	Voltage - Rated	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Specifications	Mounting Type	Gender	Number of Contacts [custom]	Contact Finish	Shell/Shielding Material	Connector Type
CnC Tech, LLC 1001-009-01000	Solder	1	1.5 A	Flag Vertical	30 V	UL94 V-0	85 °C	-55 °C	USB 1.1	Through Hole Right Angle	Receptacle	4	Gold	Brass Steel	USB-A (USB TYPE-A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-A (USB TYPE-A) USB 1.1 Receptacle Connector 4 Position Through Hole, Right Angle
