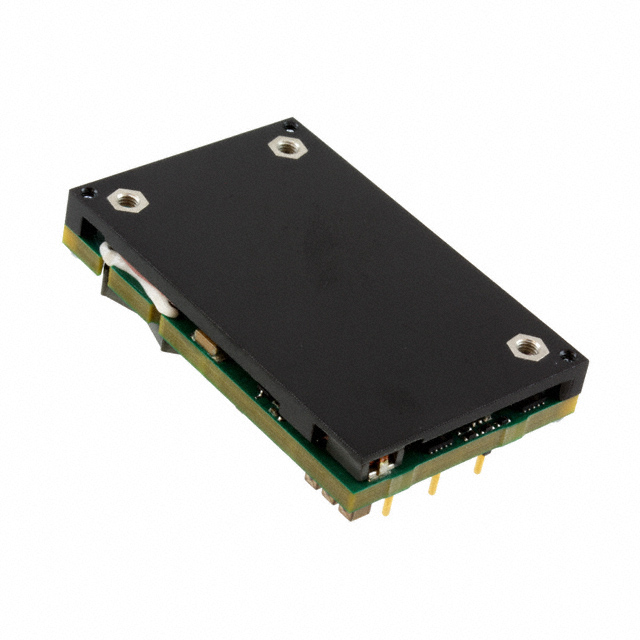

RBQ-12/33-D48PBS-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 11.85V 391W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RBQ-12/33-D48PBS-C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 11.85V 391W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RBQ-12/33-D48PBS-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 33 A |
| Efficiency | 96 % |
| Features | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module, 1/4 Brick |
| Power (Watts) | 391 W |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.6 mm |
| Type | Intermediate Bus Converter |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 11.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RBQ-12 Series
Intermediate Bus Converter DC DC Converter 1 Output 11.85V 33A 36V - 75V Input
