SS-82100-004
ActiveBEL MAGNETIC SOLUTIONS

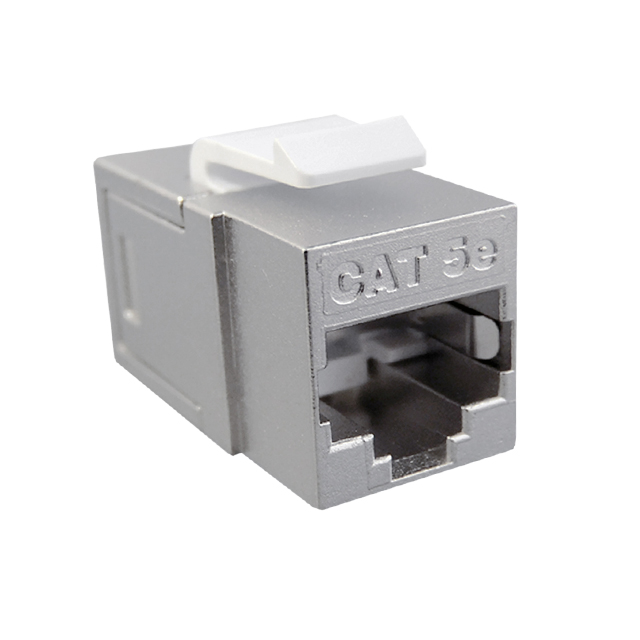

MODULAR CONNECTORS / ETHERNET CONNECTORS CAT5E SHIELDED KEYSTONE COUPLER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
SS-82100-004
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTORS / ETHERNET CONNECTORS CAT5E SHIELDED KEYSTONE COUPLER
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-82100-004 |
|---|---|
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 1.27 Ám |
| Exterior Contact Finish Thickness | 50 Áin |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | Silver |
| Exterior Housing Material | Zinc Alloy |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Features | Panel Lock, Panel Stops |
| Interior Contact Finish | Tin |
| Interior Contact Finish Thickness | 2.54 µm |
| Interior Contact Finish Thickness | 100 µin |
| Interior Contact Material | Phosphor Bronze |
| Interior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Ratings | Cat5e |
| Style | Modular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SS-82100 Series
Insert Modular Jack 8p8c (RJ45, Ethernet) To Modular Jack 8p8c (RJ45, Ethernet) Silver
