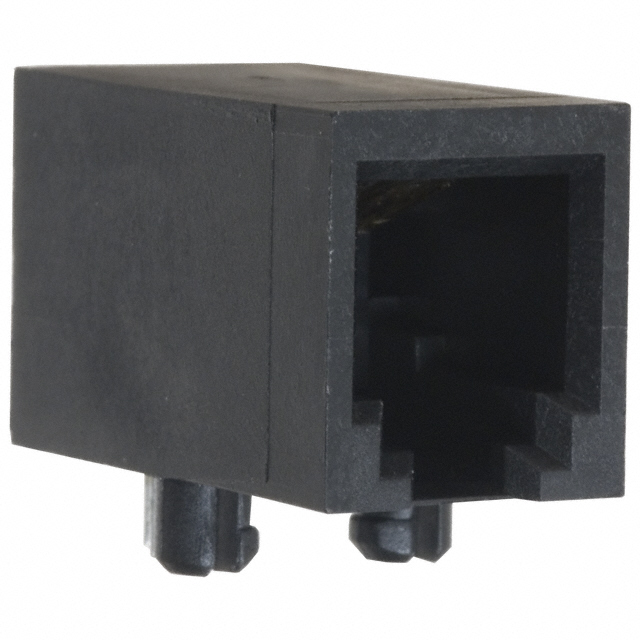

SS-6444-NF

Active

BEL MAGNETIC SOLUTIONS

RJ10, JACK, 4 CONTACT, 4 POSITION, 1 PORT, RIGHT ANGLE PCB, UNSHIELDED

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

RJ10, JACK, 4 CONTACT, 4 POSITION, 1 PORT, RIGHT ANGLE PCB, UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-6444-NF

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	4p4c
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Termination	Number of Positions/Contacts	Contact Finish	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Shielding	Number of Ports	Tab Direction	Connector Type	LED Color	Housing Material	Contact Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
BEL MAGNETIC SOLUTIONS SS-6444-NF	Solder	4p4c	Gold	Through Hole	85 °C	-40 °C	90 °	Unshielded	1	Down	Jack	Does Not Contain LED	Thermoplastic	Copper Alloy	1	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The SS-6444-NF is a 4P4C/RJ11 Modular Jack with 30μinch gold-plated copper alloy contacts and UL94V-0 flame-rated thermoplastic housing.
