CE3520K3-C1
ActiveCEL
RF MOSFET PHEMT FET 2V 4MICROX
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CE3520K3-C1
ActiveCEL
RF MOSFET PHEMT FET 2V 4MICROX
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CE3520K3-C1 |
|---|---|
| Current - Test | 10 mA |
| Current Rating (Amps) | 0.015 A |
| Frequency | 20 GHz |
| Gain | 13.8 dB |
| Noise Figure | 0.8 dB |

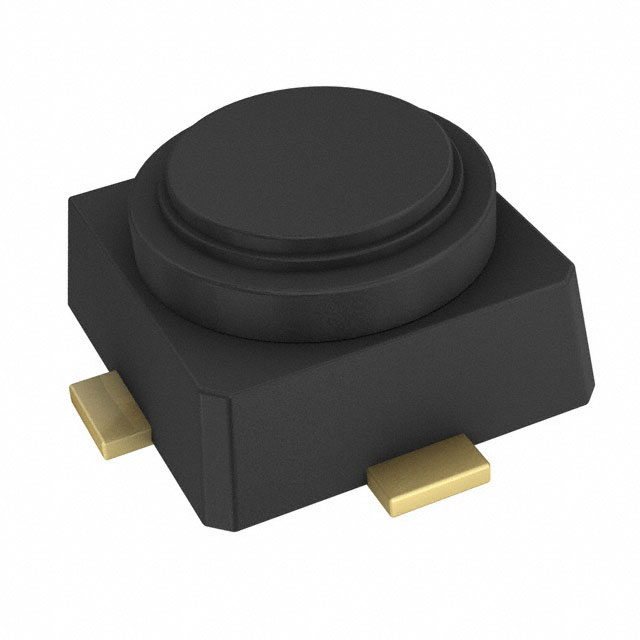

| Package / Case | 4-Micro-X |
| Power - Output | 125 mW |
| Supplier Device Package | 4-Micro-X |
| Technology | pHEMT FET |
| Voltage - Rated | 4 V |
| Voltage - Test | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.88 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.92 | |||
| 2500 | $ 0.86 | |||
| 5000 | $ 0.83 | |||
| Digi-Reel® | 1 | $ 1.88 | ||
| 10 | $ 1.69 | |||
| 25 | $ 1.59 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.92 | |||
| 2500 | $ 0.86 | |||
| 5000 | $ 0.83 | |||
| Tape & Reel (TR) | 10000 | $ 0.80 | ||
Description
General part information
CE3520 Series
RF Mosfet 2 V 10 mA 20GHz 13.8dB 125mW 4-Micro-X
Documents
Technical documentation and resources
