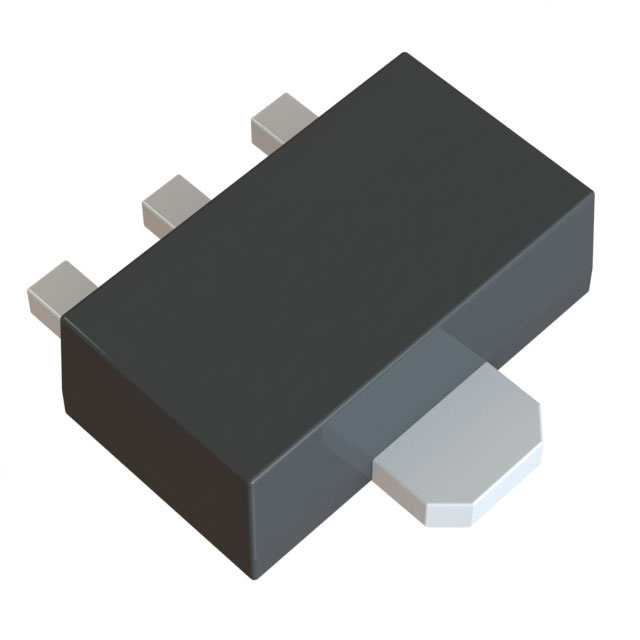

RS3002-5.0YE3
ActiveRunic Technology
IC REG LINEAR 5.0V 150MA SOT89-3
Deep-Dive with AI
Search across all available documentation for this part.
RS3002-5.0YE3
ActiveRunic Technology
IC REG LINEAR 5.0V 150MA SOT89-3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RS3002-5.0YE3 |
|---|---|
| Control Features | Enable |
| Current - Output | 150 mA |
| Current - Quiescent (Iq) | 8 ÁA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-243AA |
| Protection Features | Over Temperature |
| PSRR [Max] | 57 dB |
| PSRR [Min] | 54 dB |
| Supplier Device Package | SOT-89-3 |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Output (Min/Fixed) | 5 V |
| Voltage Dropout (Max) [Max] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.38 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.19 | |||
| Tape & Reel (TR) | 1000 | $ 0.15 | ||
| 2000 | $ 0.13 | |||
| 5000 | $ 0.13 | |||
| 10000 | $ 0.12 | |||
| 25000 | $ 0.11 | |||
| 50000 | $ 0.10 | |||
Description
General part information
RS3002 Series
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-89-3
