P5240010M4AO2

Active

Rosenberger

PATCHCORD,LC UNIBOOT -LCD UNIBOO

Search across all available documentation for this part.

Active

Rosenberger

PATCHCORD,LC UNIBOOT -LCD UNIBOO

Technical Specifications

Parameters and characteristics for this part

Specification	P5240010M4AO2

1st Connector	LC Duplex
2nd Connector	LC Duplex
Bend Radius	30 mm
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Color - Cable	Orange
Color - Connectors	Beige
Features	Plenum
Fiber Type	62.5/125
Insertion Loss	0.15 dB
Length - Overall [x]	1 m
Length - Overall [x]	3.3 ft
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Type	Multimode, Duplex, OM1

Part	Type	Insertion Loss	1st Connector	Color - Cable	Bend Radius	Features	Color - Connectors	2nd Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Fiber Type
Rosenberger P5240010M4AO2	Duplex Multimode OM1	0.15 dB	LC Duplex	Orange	30 mm	Plenum	Beige	LC Duplex	2 mm	0.08 in	1 m	3.3 ft	-10 °C	158 °F	62.5/125

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

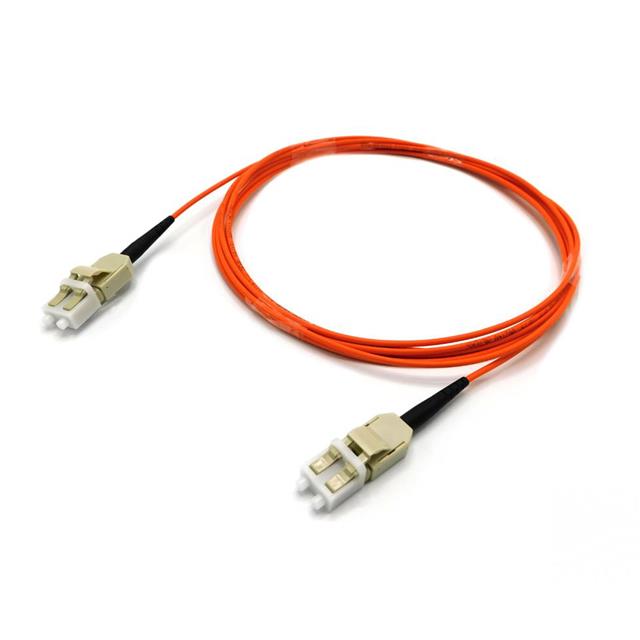

Cable Fiber Optic LC Duplex To LC Duplex 62.5/125 3.3' (1.0m)
