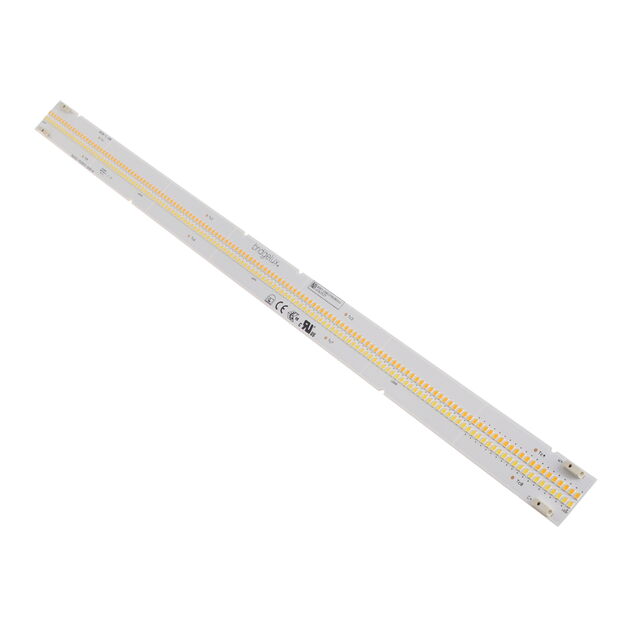

BXEB-TL-L0560Z-2750S2000-A-C3

Active

BRIDGELUX

LED MOD VESTA WHT LNR STRP 5000K

Search across all available documentation for this part.

Active

BRIDGELUX

LED MOD VESTA WHT LNR STRP 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	BXEB-TL-L0560Z-2750S2000-A-C3

CCT (K)	5000 K, 2700 K
Color	White, Cool, White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	98
Current - Max [Max]	2 A
Current - Test	1.2 A
Height [z]	5.6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	138 lm/W, 122 lm/W
Luminous Flux @ Current/Temperature	3360 lm, 2960 lm
Size / Dimension [x]	560 mm
Size / Dimension [y]	31 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	20.3 V

Part	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Viewing Angle	Lens Type	Configuration	Lumens/Watt @ Current - Test	Type	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	CCT (K)	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Color
BRIDGELUX BXEB-TL-L0560Z-2750S2000-A-C3	98	2960 lm 3360 lm	120 °	Flat	Linear Light Strip	122 lm/W 138 lm/W	LED Module	2 A	20.3 V	1.2 A	2700 K 5000 K	5.6 mm	31 mm	560 mm	White Cool White Warm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module Vesta™ Tunable Linear Gen 3 White, Warm / White, Cool Linear Light Strip
