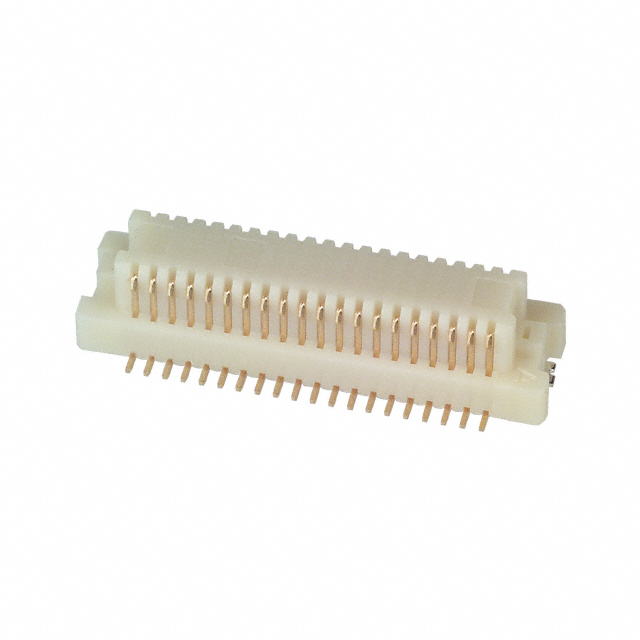

DF15(0.8)-40DS-0.65V(56)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15(0.8)-40DS-0.65V(56)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.118 in
Height Above Board	3 mm
Mated Stacking Heights	5 mm, 7 mm, 4 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Height Above Board	Height Above Board	Number of Rows	Mated Stacking Heights	Connector Type	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type
Hirose Electric USA, Inc. DF15(0.8)-30DS-0.65V(56)	0.118 in	3 mm	2	4 mm 5 mm 7 mm	Center Strip Contacts Receptacle	Gold	Board Guide Solder Retention	4 Áin	0.1 Ám	30	0.026 in	0.65 mm	Surface Mount
Hirose Electric USA, Inc. DF15(0.8)-40DS-0.65V(56)	0.118 in	3 mm	2	4 mm 5 mm 7 mm	Center Strip Contacts Receptacle	Gold	Board Guide Solder Retention	4 Áin	0.1 Ám	40	0.026 in	0.65 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
