NHD-02161Z-FSY-YBW-C
ActiveNewhaven Display Intl

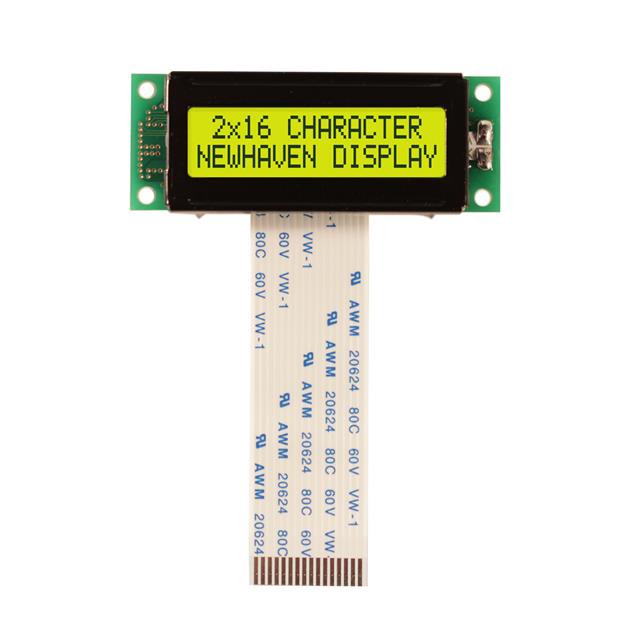

LCD MOD 32DIG 16X2 TRANS YLW/GRN
Deep-Dive with AI
Search across all available documentation for this part.
NHD-02161Z-FSY-YBW-C
ActiveNewhaven Display Intl
LCD MOD 32DIG 16X2 TRANS YLW/GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-02161Z-FSY-YBW-C |
|---|---|
| Background Color | Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [x] | 1.85 mm |
| Character Size [y] | 3.23 mm |
| Controller Type | SPLC780D, ST7066U |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.33 mm |
| Dot Size [y] | 0.36 mm |
| Interface | Parallel |
| Number of Characters | 32 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 53 mm |
| Outline L x W x H [y] | 20 mm |
| Outline L x W x H [z] | 8.5 mm |
| Text Color | Blue |
| Viewing Area [x] | 36 mm |
| Viewing Area [y] | 10 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.28 | |
| 5 | $ 10.60 | |||
| 10 | $ 9.93 | |||
| 50 | $ 9.36 | |||
| 100 | $ 8.91 | |||
| 250 | $ 8.46 | |||
| 500 | $ 8.12 | |||
Description
General part information
NHD-02161 Series
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 53.00mm x 20.00mm x 8.50mm
