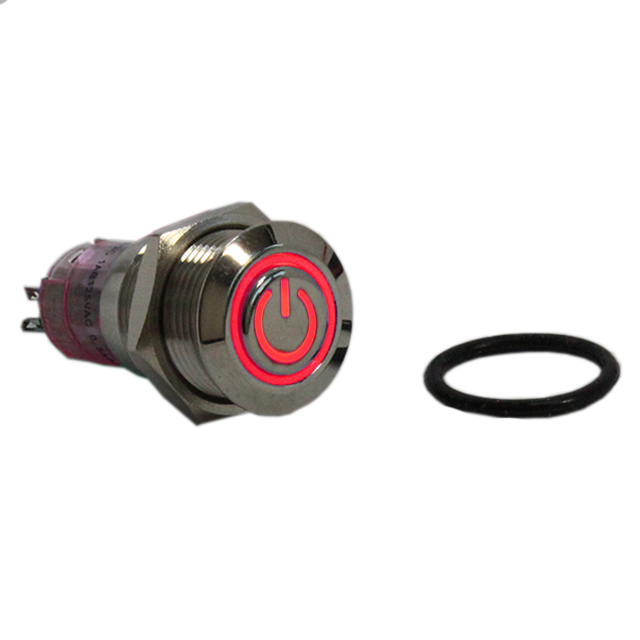

CH1NGSRGNS

Active

CIT Relay and Switch

SWITCH PB SPDT 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPDT 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CH1NGSRGNS

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Electrical Life	30000 Cycles
Features	Stainless Steel
Illumination Type, Color	Green/Red, LED
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Voltage Rating - AC	Voltage Rating - DC	Features	Termination Style	Actuator Type	Illumination Type, Color	Electrical Life	Mounting Type	Circuit	Switch Function	Actuator Marking	Type	Ingress Protection	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]
CIT Relay and Switch CH1NGSRGNS	125 V	24 V	Stainless Steel	Solder Lug	Button Flush Round	Green/Red LED	30000 Cycles	Panel Mount Front	SPDT	On-Mom	No Marking	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	Silver	70 °C	-25 °C	16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5	$ 14.73

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
