031-4890-1

Active

Amphenol RF

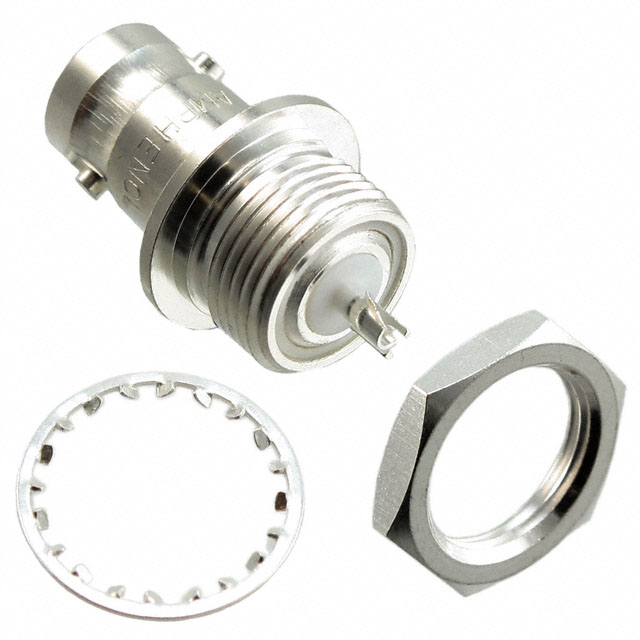

CONN BNC 0HZ TO 1GHZ 50OHM SOLDER CUP ST PANEL MOUNT RCP SILVER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC 0HZ TO 1GHZ 50OHM SOLDER CUP ST PANEL MOUNT RCP SILVER

Technical Specifications

Parameters and characteristics for this part

Specification	031-4890-1

Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Isolated
Frequency - Max [Max]	4 GHz
Housing Color	White, Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Center Contact Material	Connector Type	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Mating Cycles	Housing Color	Mounting Feature	Frequency - Max [Max]	Fastening Type	Contact Termination	Body Finish	Insertion Loss	Connector Style	Voltage Rating	Center Contact Plating	Impedance	Shield Termination	Features	Body Material	Center Gender	Convert From (Adapter End)	Style	Convert To (Adapter End)	Conversion Type	Adapter Series	Adapter Type
Amphenol RF 031-4890-1	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Female Socket Jack	1 Connector 1 Lockwasher 1 Nut	-65 ░C	165 °C	1	500	Silver White	Bulkhead - Rear Side Nut	4 GHz	Bayonet Lock	Solder Cup	Silver	0.2 dB	BNC	500 V	Silver	50 Ohms	Solder	Isolated	Brass
Amphenol RF 031-4890-9		Beryllium Copper	Female Socket Jack		-65 ░C	165 °C	1	500			1 GHz	Bayonet Lock	Solder Cup	Silver	0.2 dB	BNC	500 V	Silver	50 Ohms	Solder	Isolated	Brass
Amphenol RF 031-4805-RFXG		Phosphor Bronze	Female Socket Receptacle	1 Connector 1 Lockwasher 1 Nut	-65 ░C	165 °C	1	500	Silver White	Bulkhead - Rear Side Nut	11 GHz		Solder Cup	Nickel		TNC	500 V	Gold	50 Ohms	Solder	Isolated	Brass
Amphenol RF 031-4804	Polyphenylene Oxide (PPO) Polystyrene (PS)	Beryllium Copper		1 Connector 1 Lockwasher 1 Nut	-65 ░C	165 °C		500		Bulkhead	11 GHz			Nickel				Silver	50 Ohms		Isolated	Brass	Female to Female	TNC Jack Female Socket	Straight	Female Socket TNC Jack	Same Series	TNC to TNC	Jack to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup

Technical documentation and resources

No documents available
