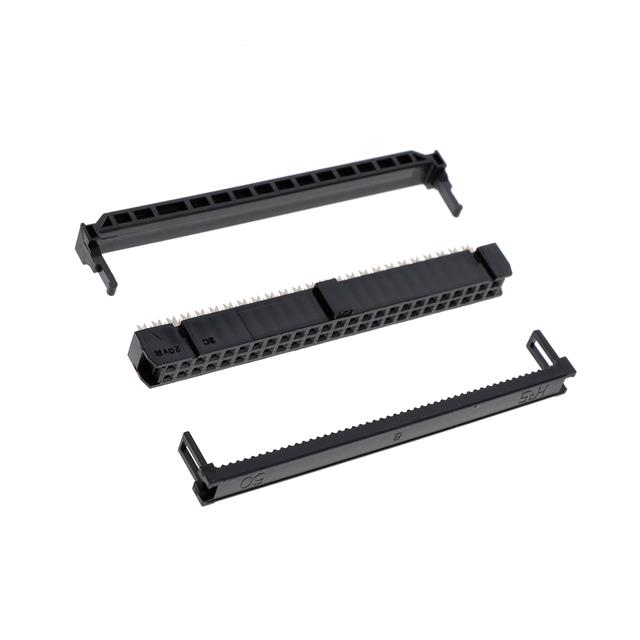

HIF3MBW-50D-2.54R(63)

Active

Hirose Electric USA, Inc.

CONN HOUSING 2.54MM DUAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3MBW-50D-2.54R(63)

Active

Hirose Electric USA, Inc.

CONN HOUSING 2.54MM DUAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3MBW-50D-2.54R(63)

Cable Termination	IDC
Color	Black
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

HIF3MBW Series

Part	Contact Finish - Post	Material Flammability Rating	Connector Type	Number of Positions Loaded	Insulation Height	Insulation Height	Fastening Type	Insulation Color	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Number of Rows	Insulation Material	Number of Positions	Contact Shape	Style	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Material	Features	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Cable Termination	Wire Gauge	Color	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing
Hirose Electric USA, Inc. HIF3MBW-64PA-2.54DS(63)	Tin	UL94 V-0	Header	All	0.335 "	8.51 mm	Latch Lock/Eject Hooks	Black	Male Pin	85 °C	-55 °C	Through Hole Right Angle	0.118 in	3 mm	0.15 µm	5.9 µin	Shrouded - 4 Wall	2	Polybutylene Terephthalate (PBT)	64	Square	Board to Cable/Wire	Gold	Solder	2.54 mm	0.1 in	2 çm	78.7 çin	0.1 in	2.54 mm	6 mm	0.236 in	Brass
Hirose Electric USA, Inc. HIF3MBW-64PA-2.54DSA(63)	Tin	UL94 V-0	Header	All	0.701 "	17.8 mm	Latch Lock/Eject Hooks	Black	Male Pin	85 °C	-55 °C	Through Hole	0.13 in	3.3 mm	0.15 µm	5.9 µin	Shrouded - 4 Wall	2	Polybutylene Terephthalate (PBT)	64	Square	Board to Cable/Wire	Gold	Solder	2.54 mm	0.1 in	2 çm	78.7 çin	0.1 in	2.54 mm	6 mm	0.236 in	Brass	Keying Slot
Hirose Electric USA, Inc. HIF3MBW-60PA-2.54DSA(63)	Tin	UL94 V-0	Header	All	0.701 "	17.8 mm	Latch Lock/Eject Hooks	Black	Male Pin	85 °C	-55 °C	Through Hole	0.13 in	3.3 mm	0.15 µm	5.9 µin	Shrouded - 4 Wall	2	Polybutylene Terephthalate (PBT)	60	Square	Board to Cable/Wire	Gold	Solder	2.54 mm	0.1 in	2 çm	78.7 çin	0.1 in	2.54 mm	6 mm	0.236 in	Brass	Keying Slot
Hirose Electric USA, Inc. HIF3MBW-60PA-2.54DSA
Hirose Electric USA, Inc. HIF3MBW-64D-2.54R			Socket				Latch Holder		Female Socket			Free Hanging (In-Line)						2		64														Feed Through Polarizing Key Strain Relief	Gold	5.9 µin	0.15 µm	Ribbon Cable	IDC	28 AWG	Black	2.54 mm	0.1 in	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MBW-64PA-2.54DS
Hirose Electric USA, Inc. HIF3MBW-50PA-2.54DSA
Hirose Electric USA, Inc. HIF3MBW-50D-2.54R			Socket				Latch Holder		Female Socket			Free Hanging (In-Line)						2		50														Feed Through Polarizing Key Strain Relief	Gold	5.9 µin	0.15 µm	Ribbon Cable	IDC	28 AWG	Black	2.54 mm	0.1 in	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MBW-50D-2.54R(63)			Socket				Latch Holder		Female Socket			Free Hanging (In-Line)						2		50														Feed Through Polarizing Key Strain Relief	Gold	5.9 µin	0.15 µm	Ribbon Cable	IDC	28 AWG	Black	2.54 mm	0.1 in	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MBW-64D-2.54R(63)			Socket				Latch Holder		Female Socket			Free Hanging (In-Line)						2		64														Feed Through Polarizing Key Strain Relief	Gold	5.9 µin	0.15 µm	Ribbon Cable	IDC	28 AWG	Black	2.54 mm	0.1 in	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.87
		40	$ 3.85
		120	$ 3.41
		520	$ 2.93
		1000	$ 2.75

Description

General part information

HIF3MBW Series

50 Position Rectangular Socket Connector IDC Gold 28 AWG
