C513A-MSN-CW0Z0232

Active

Cree LED

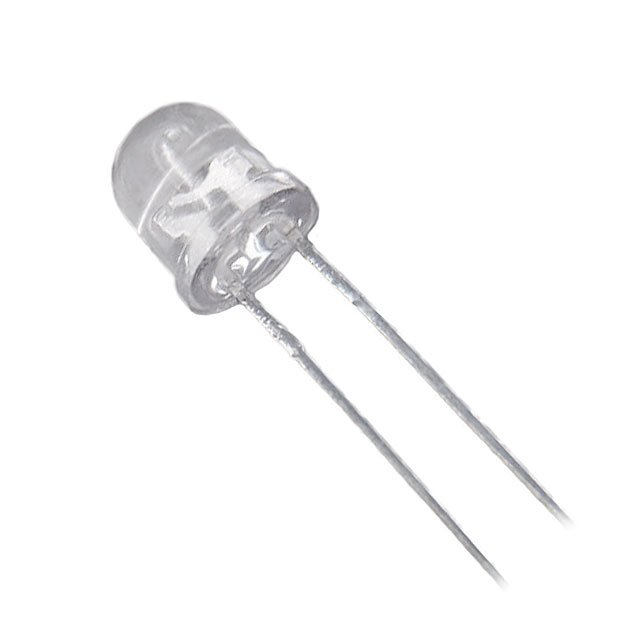

LED UNI-COLOR WHITE 2-PIN T-1 3/4 AMMO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C513A-MSN-CW0Z0232

Active

Cree LED

LED UNI-COLOR WHITE 2-PIN T-1 3/4 AMMO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C513A-MSN-CW0Z0232

Color	White, Warm
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	9.1 mm
Lens Color	Colorless
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	7500 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	5 mm
Viewing Angle	55 °
Voltage - Forward (Vf) (Typ)	3.2 V
Wavelength - Dominant	2800 K

C513A Series

Part	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Current - Test	Configuration	Mounting Type	Lens Style	Package / Case	Viewing Angle	Lens Color	Wavelength - Dominant	Height (Max) [Max] [z]	Lens Size	Lens Size	Millicandela Rating	Color	Lens Transparency	Wavelength - Dominant [custom]	Lens Size [diameter]	Supplier Device Package [diameter]
Cree LED C513A-MSS-CX0Z0232	3.2 V	5 mm	20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °	Colorless	2800 K	12.2 mm	T-1 3/4	5 mm	8090 mcd	Warm White	Clear
Cree LED C513A-MSS-CW0Z0131	3.2 V	5 mm	20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °	Colorless	2800 K	12.2 mm	T-1 3/4	5 mm	7500 mcd	Warm White	Clear
Cree LED C513A-WSS-CX0Z0341	3.2 V		20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °			12.2 mm			8090 mcd	Cool White		9000 K	5 mm Dia	5 mm
Cree LED C513A-WSS-CY0Z0341	3.2 V		20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °			12.2 mm			8930 mcd	Cool White		9000 K	5 mm Dia	5 mm
Cree LED C513A-WSN-CY0Z0342	3.2 V		20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °			9.1 mm			8930 mcd	Cool White		9000 K	5 mm Dia	5 mm
Cree LED C513A-MSS-CX0Z0511	3.2 V	5 mm	20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °	Colorless	2800 K	12.2 mm	T-1 3/4	5 mm	8090 mcd	Warm White	Clear
Cree LED C513A-WSN-CX0Z0341	3.2 V		20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °			9.1 mm			8090 mcd	Cool White		9000 K	5 mm Dia	5 mm
Cree LED C513A-MSN-CX0Z0512	3.2 V	5 mm	20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °	Colorless	2800 K	9.1 mm	T-1 3/4	5 mm	8090 mcd	Warm White	Clear
Cree LED C513A-MSN-CW0Z0232	3.2 V	5 mm	20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °	Colorless	2800 K	9.1 mm	T-1 3/4	5 mm	7500 mcd	Warm White	Clear
Cree LED C513A-WSN-CY0Z0231	3.2 V		20 mA	Standard	Through Hole	Round with Domed Top	Radial	55 °			9.1 mm			8930 mcd	Cool White		9000 K	5 mm Dia	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.26
		10	$ 0.24
		25	$ 0.24
		50	$ 0.23
		100	$ 0.21
		250	$ 0.20
Digikey	Tape & Box (TB)	2500	$ 0.22

Description

General part information

C513A Series

Round LEDs offer superior light output for excellent readability in sunlight and dependable performance. They provide extremely stable light output over long periods of time.Size (mm): 5 • Color Temperatures: Cool White : Min . (4600K) / Typical (9000K) Warm White : Min . (2500K) / Typical (2800K) • Luminous Intensity (mcd) C513A-WSS/WSN:(3000-12000) C513A-MSS/MSN:(3000-12000) • CRI: Typical CRI for Cool White is 75 Typical C
