240A25

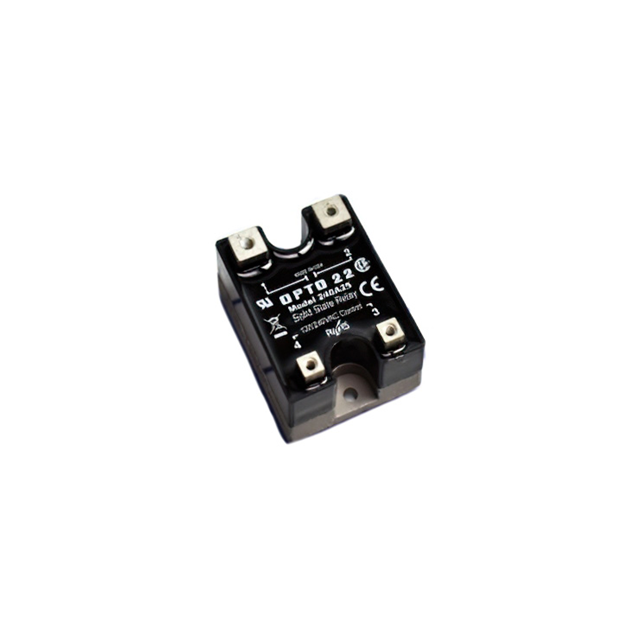

ActiveSOLID STATE RELAY, 25 A, 280 VAC, PANEL MOUNT, SCREW, ZERO CROSSING
Deep-Dive with AI
Search across all available documentation for this part.
240A25
ActiveSOLID STATE RELAY, 25 A, 280 VAC, PANEL MOUNT, SCREW, ZERO CROSSING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 240A25 |
|---|---|
| Load Current | 25 A |
| Mounting Type | Chassis Mount |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input | 85 VAC |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
- Series
The 240A25 is an AC Control Solid State Relay with rugged epoxy encapsulation, zero crossing switching mode and screw terminals. This Power-series panel mount relay is subjected to full load test and six times the rated current surge before and after encapsulation. Unique heat-spreader technology. Designed for mounting on printed circuit boards.
