PSKV50-503A3030
ActiveAmphenol Piher Sensing Systems
TRIMMER 50K OHM 0.1W GW TOP ADJ
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSKV50-503A3030
ActiveAmphenol Piher Sensing Systems
TRIMMER 50K OHM 0.1W GW TOP ADJ
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSKV50-503A3030 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 0.1 W |
| Power (Watts) | 0.1 W |
| Resistance | 50 kOhms |
| Resistive Material | Carbon |
| Size / Dimension [diameter] | 0.248 in |
| Size / Dimension [diameter] | 6.3 mm |
| Temperature Coefficient | 1500 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.56 | |
Description
General part information
PSKV50 Series

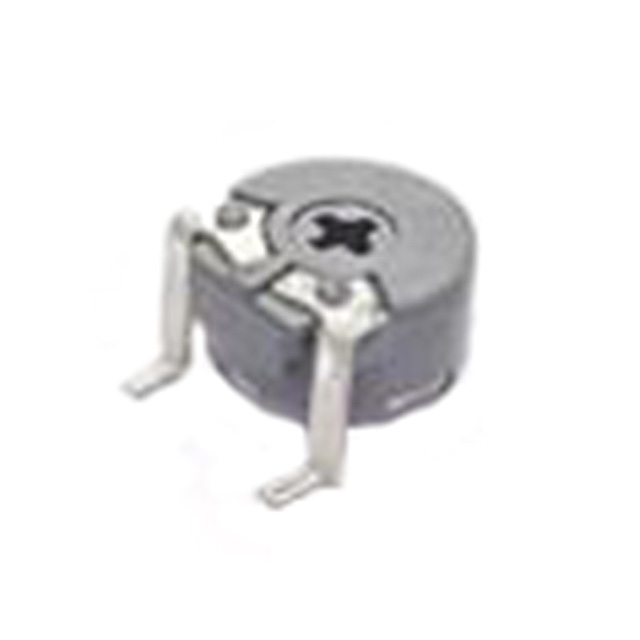

50 kOhms 0.1W, 1/10W Gull Wing Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
