EDZ960/9

Active

On Shore Technology Inc.

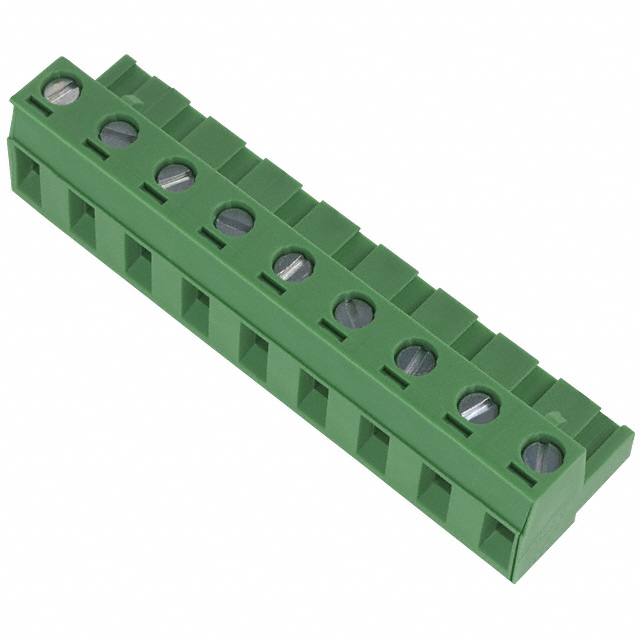

TERM BLOCK PLUG 9POS STR 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ED Part Number Breakdown

EDZ960/9

Active

On Shore Technology Inc.

TERM BLOCK PLUG 9POS STR 7.62MM

Deep-Dive with AI

DocumentsDatasheet ED Part Number Breakdown

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDZ960/9

Color	Green
Contact Material	Copper Tin Alloy
Housing Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	9
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	6 mm

EDZ960 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Levels	Termination Style	Wire Strip Length	Torque - Screw	Torque - Screw	Contact Material	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm˛	Voltage - UL	Positions Per Level	Material Flammability Rating	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Type	Housing Material	Wire Gauge or Range - mm²	Number of Positions
On Shore Technology Inc. EDZ960/14	-30 ░C	105 ░C	14	1	Screw	6 mm	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	0.3 in	7.62 mm	2.5 mm˛	300 V	14	UL94 V-0	Green	28 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Polyamide (PA) Nylon
On Shore Technology Inc. EDZ960/10	-30 ░C	105 ░C	10	1	Screw	6 mm	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	0.3 in	7.62 mm	2.5 mm˛	300 V	10	UL94 V-0	Green	28 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Polyamide (PA) Nylon
On Shore Technology Inc. EDZ960/7	-30 ░C	105 ░C	7	1	Screw	6 mm	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	0.3 in	7.62 mm	2.5 mm˛	300 V	7	UL94 V-0	Green	28 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Polyamide (PA) Nylon
On Shore Technology Inc. EDZ960/4	-30 ░C	105 ░C	4	1	Screw	6 mm	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	0.3 in	7.62 mm	2.5 mm˛	300 V	4	UL94 V-0	Green	28 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Polyamide (PA) Nylon
On Shore Technology Inc. EDZ960/9	-30 ░C	105 ░C	9	1	Screw	6 mm	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	0.3 in	7.62 mm	2.5 mm˛	300 V	9	UL94 V-0	Green	28 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Polyamide (PA) Nylon
On Shore Technology Inc. EDZ960/16	-30 ░C	105 ░C		1	Screw	6 mm	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	0.3 in	7.62 mm		300 V	16	UL94 V-0	Green	28 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Polyamide (PA) Nylon	2.5 mm²	16
On Shore Technology Inc. EDZ960/3	-30 ░C	105 ░C		1	Screw	6 mm	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	0.3 in	7.62 mm	2.5 mm˛	300 V	3	UL94 V-0	Green	28 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Polyamide (PA) Nylon
On Shore Technology Inc. EDZ960/2	-30 ░C	105 ░C	2	1	Screw	6 mm	4.4 Lb-In	0.5 Nm	Copper Tin Alloy	0.3 in	7.62 mm		300 V	2	UL94 V-0	Green	28 AWG	12 AWG	Free Hanging (In-Line)	Plug Female Sockets	Polyamide (PA) Nylon	2.5 mm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.29

Description

General part information

EDZ960 Series

9 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) Free Hanging (In-Line)
