73607WS 008500

Active

Belden Inc.

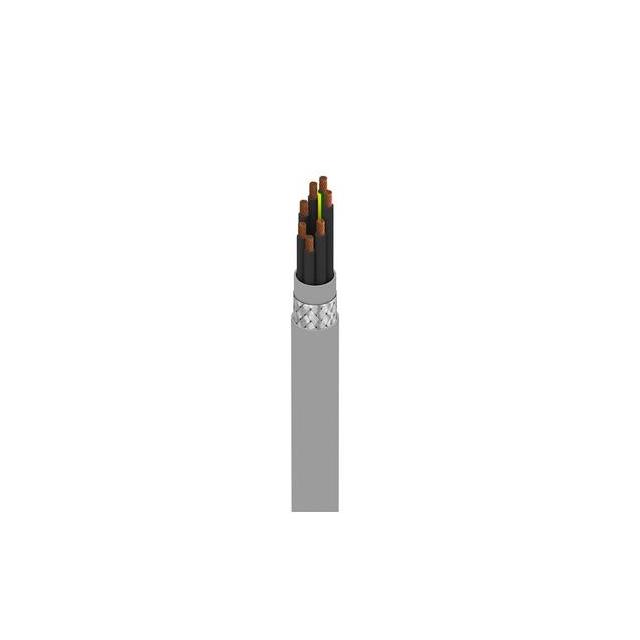

CABLE 7COND 16AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 7COND 16AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	73607WS 008500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.484 in
Jacket (Insulation) Diameter [diameter]	12.29 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	7
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-5 °C
Ratings	UL Style 2587
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	600 V
Wire Gauge	16 AWG

Part	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Conductor Material	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Jacket Color	Cable Type	Voltage	Features	Ratings
Belden Inc. 73607WS 008500	500 '	152.4 m	30 AWG	26	0.889 mm	0.035 in	Copper Tinned	7	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper Bare	Braid	0.484 in	12.29 mm	85 %	90 °C	-5 °C	16 AWG	Gray	Multi-Conductor	600 V	Oil Resistant	UL Style 2587

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.44

General part information

7 Conductor Multi-Conductor Cable Gray 16 AWG Braid 500.0' (152.4m)
