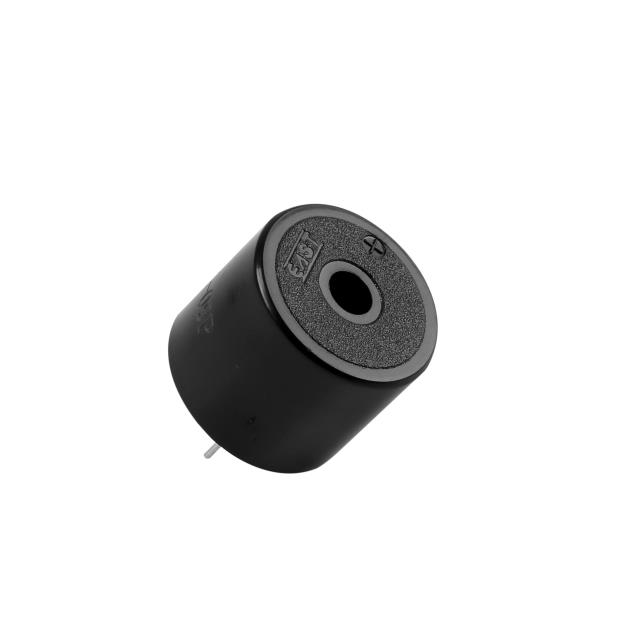

SL1I-09P
ActiveEast Electronics
BUZZER 9V 23.5MM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SL1I-09P
ActiveEast Electronics
BUZZER 9V 23.5MM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SL1I-09P |
|---|---|
| Current - Supply | 15 mA |
| Frequency | 3.3 kHz |
| Height - Seated (Max) [Max] [z] | 0.756 in |
| Height - Seated (Max) [Max] [z] | 19.2 mm |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 23.5 mm |
| Size / Dimension [diameter] | 0.925 " |
| Sound Pressure Level (SPL) | 85 dB |
| Termination | PC Pins |
| Voltage - Rated | 9 V |
| Voltage Range [Max] | 12 V |
| Voltage Range [Min] | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.12 | |
| 100 | $ 2.06 | |||
| 1000 | $ 1.68 | |||
Description
General part information
SL1I-09 Series
Buzzers 9 V 15mA 3.3kHz 85dB @ 9V, 30cm Through Hole PC Pins
