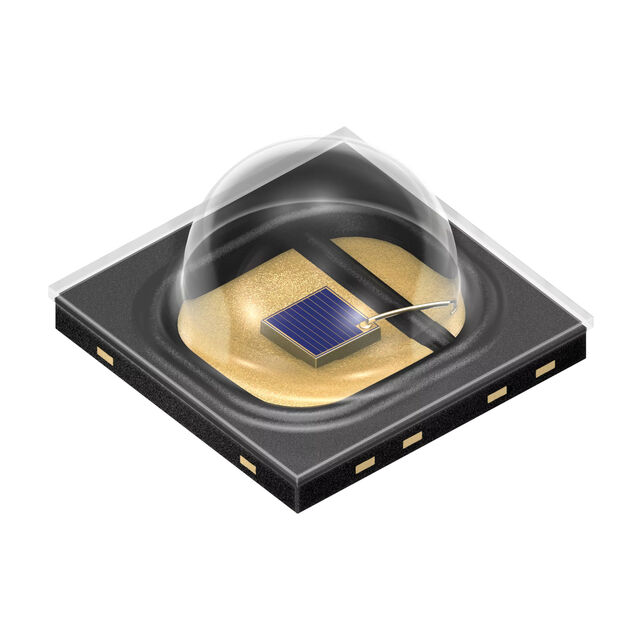

SFH 4715A-DADB

Active

ams-OSRAM USA INC.

IR EMITTER, 860NM, 500MW/SR, SMD ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

IR EMITTER, 860NM, 500MW/SR, SMD ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 4715A-DADB

Current - DC Forward (If) (Max) [Max]	2 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	450 mW/sr
Type	Infrared (IR)
Viewing Angle	80 °
Voltage - Forward (Vf) (Typ)	1.7 V
Wavelength	860 nm

Part	Wavelength	Package / Case	Voltage - Forward (Vf) (Typ)	Viewing Angle	Type	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If [Min]	Orientation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
ams-OSRAM USA INC. SFH 4715A-DADB	860 nm	3-SMD No Lead	1.7 V	80 °	Infrared (IR)	2 A	450 mW/sr	Top View	Surface Mount	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 860nm 1.7V 2A 450mW/sr @ 1A 80° 3-SMD, No Lead
